M86649/M86611-B TIMKEN

Brand - TIMKEN
Item Number - M86649/M86611-B TIMKEN
Also Known As - M86649 - M86611-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 30.162
Bore Diameter (d) inch - 1.1875
Outer Diameter (D) mm - 64.292
Outer Diameter (D) inch - 2.5312
Width (T1) mm - 8.763
Width (T1) inch - 0.345
Dynamic Load Rating (C1) N - 60200
Dynamic Load Rating (C1) lbf - 13500
Factor (e) - 0.55
Factor (Y) - 1.1
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 15600
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3510
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 14600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3280
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.07
Basic Static Radial Load Rating (C0) N - 71700
Basic Static Radial Load Rating (C0) lbf - 16100
Cone Width (B) mm - 21.433
Cone Width (B) inch - 0.8438
Cup Width (C) mm - 16.67
Cup Width (C) inch - 0.6563
Effective Center Location (a) mm - -3.3
Effective Center Location (a) inch - -0.13
Outer Diameter of Outer Ring Flange (D1) mm - 70
Outer Diameter of Outer Ring Flange (D1) inch - 2.7559
Flange Width (C2) mm - 4
Flange Width (C2) inch - 0.1575
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 38
Cone Frontface Backing Diameter (da) inch - 1.5
Cone Backface Backing Diameter (db) mm - 44
Cone Backface Backing Diameter (db) inch - 1.73
Cup Frontface Backing Diameter (Da) mm - 63
Cup Frontface Backing Diameter (Da) inch - 2.48
Geometry Factor (G1) - 16.8
Geometry Factor (G2) - 7.4
Geometry Factor (Cg) - 0.0736
Weight (kg) - 0.36
Weight (lbs) - 0.79
Inner Part Number - M86649
Outer Part Number - M86611-B

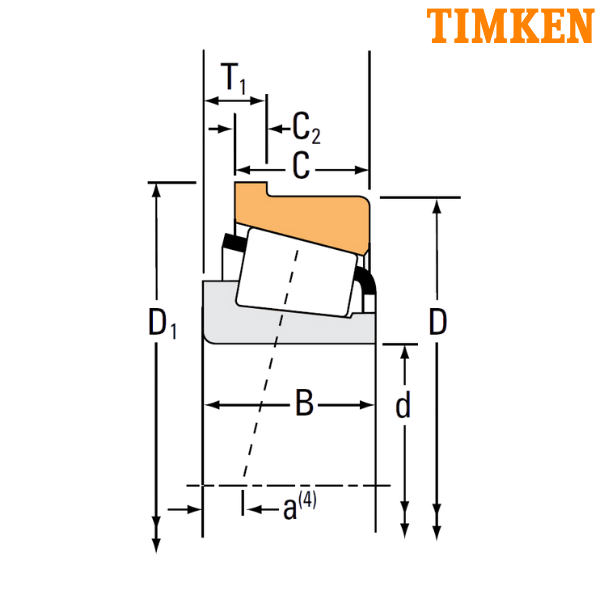

TSF - Single-Row Bearing with a Flange on the Outer Ring

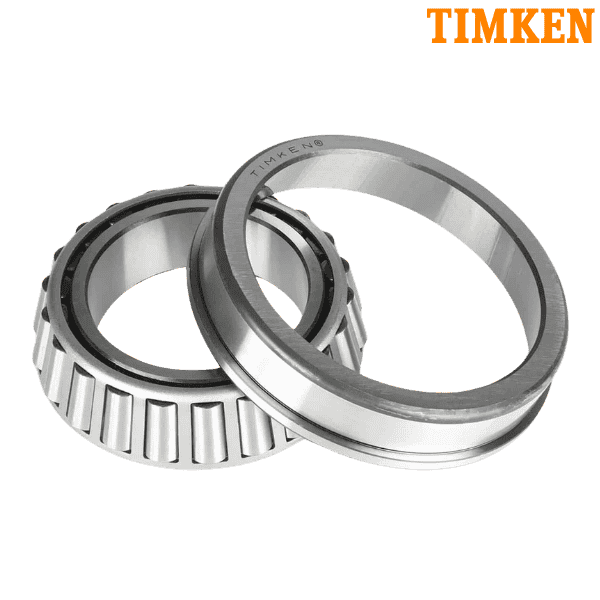

** Images are for representation purposes only
