MB320-9L RBC

Brand - RBC
Item Number - MB320-9L RBC
Category - Radial spherical Plain Bearing
Basic Part Number - (-320)

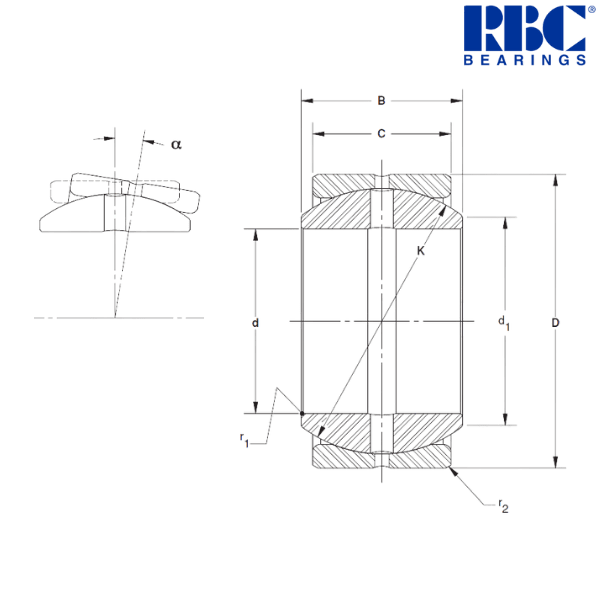

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 320 (-0.040) mm
Nominal Outside Diameter (D) - 440 (-0.045) mm
Nominal Inner Ring Width (B) - 160 (-0.40) mm
Nominal Outer Ring Width (C) - 135 (-0.90) mm
Sphere Diameter (K) - 380 mm
Unmounted Diametral Clearance - 0.20/0.34 mm
Shaft Shoulder Diameter (d1) - 345 mm
Tilt Angle (α) - 4°
Maximum Shaft Fillet (r1) - 1.1 mm
Maximum Housing Fillet (r2) - 3 mm
Approximate Weight - 78.52 kg
Static Radial Load Limit - 22000 kN
Static Thrust Load Limit - 3100 kN
Static Dynamic Load Limit - 4400 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 319.938 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 319.902 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 320.046 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 320.021 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 439.897 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 439.834 mm

Notes about MB Series :
These bearings are built to handle substantial radial loads even when misalignment occurs. They can also support a moderate amount of thrust load. Featuring a non-separable design with a single split outer ring, they are offered in both open and sealed configurations, and are available in both inch and metric dimensions.

Other salient points to be noted :
• Outer rings of bearings size 160 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating and Fracture.

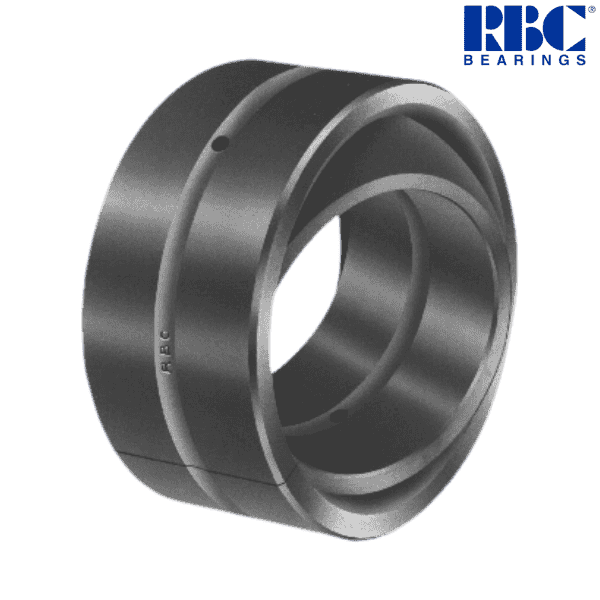

♦ ♦ Images are for representation purposes only
