MB45-SSQ RBC

Brand - RBC
Item Number - MB45-SSQ RBC
Category - QuadLube® Long Life Spherical Plain Bearings
Basic Part Number - (-45)

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 45 (-0.012) mm
Nominal Outside Diameter (D) - 68 (-0.013) mm
Nominal Inner Ring Width (B) - 32 (-0.12) mm
Nominal Outer Ring Width (C) - 25 (-0.30) mm
Sphere Diameter (K) - 60 mm
Unmounted Diametral Clearance - 0.07/0.17 mm
Shaft Shoulder Diameter (d1) - 51 mm
Tilt Angle (α) - 4°
Maximum Shaft Fillet (r1) - 0.6 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 0.42 kg
Static Radial Load Limit - 645 kN
Static Thrust Load Limit - 106 kN
Static Dynamic Load Limit - 129 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 44.975 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 44.959 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 45.02 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 45.009 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 67.968 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 67.938 mm

Notes about MB....SSQ Series :
An advanced lubrication system delivers up to 300% longer service life. This patented design ensures consistent lubrication in the load zone, even without load reversal, and enables relubrication while the bearing is still under load. These bearings extend operational life in challenging applications and are available in both inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

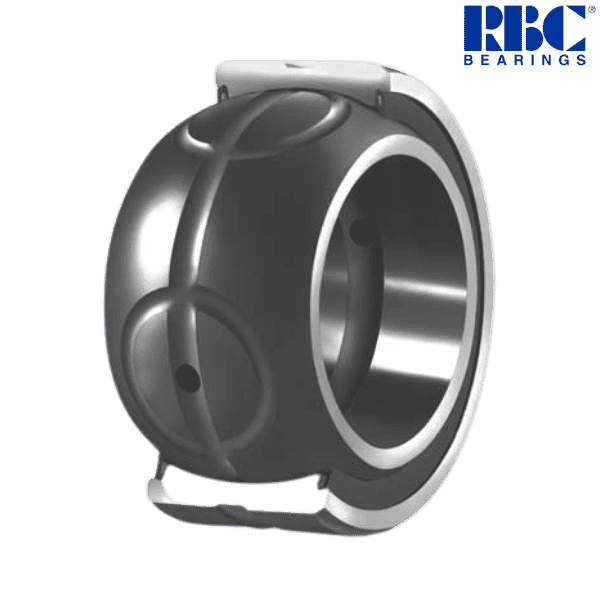

♦ ♦ Images are for representation purposes only
