MBH160180-9LSS RBC

Brand - RBC
Item Number - MBH160180-9LSS RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-160180)

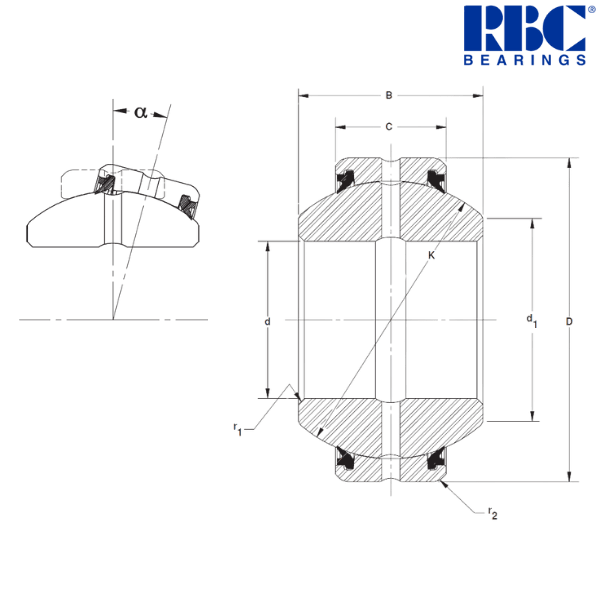

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 160 (-0.025) mm
Nominal Outside Diameter (D) - 260 (-0.035) mm
Nominal Inner Ring Width (B) - 135 (-0.25) mm
Nominal Outer Ring Width (C) - 80 (-0.70) mm
Sphere Diameter (K) - 234 mm
Unmounted Diametral Clearance - 0.15/0.27 mm
Shaft Shoulder Diameter (d1) - 191 mm
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1.1 mm
Approximate Weight - 26.39 kg
Static Radial Load Limit - 8000 kN
Static Thrust Load Limit - 1100 kN
Static Dynamic Load Limit - 1600 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 159.957 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 159.932 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 160.033 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 160.015 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 259.926 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 259.874 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• Outer rings of bearings size 160 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
