MBH180200-9L RBC

Brand - RBC
Item Number - MBH180200-9L RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (190200)

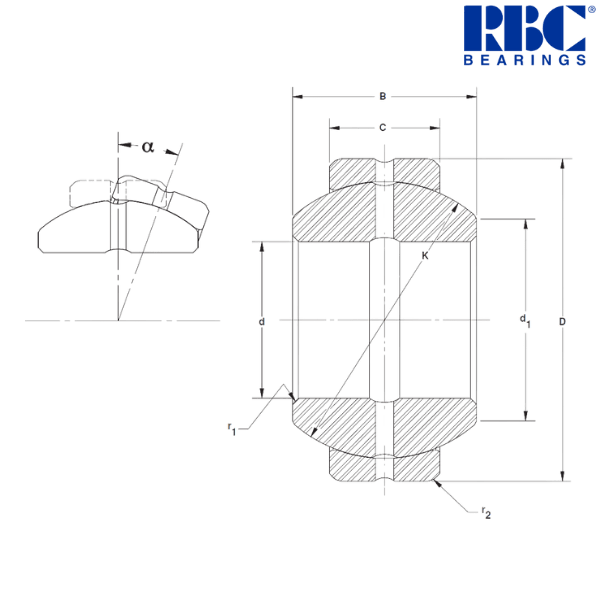

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 180 (-0.025) mm
Nominal Outside Diameter (D) - 290 (-0.035) mm
Nominal Inner Ring Width (B) - 155 (-0.25) mm
Nominal Outer Ring Width (C) - 100 (-0.70) mm
Sphere Diameter (K) - 265 mm
Unmounted Diametral Clearance - 0.15/0.27 mm
Shaft Shoulder Diameter (d1) - 215 mm
Tilt Angle (α) - 14°
Maximum Shaft Fillet (r1) - 1.1 mm
Maximum Housing Fillet (r2) - 1.1 mm
Approximate Weight - 38.87 kg
Static Radial Load Limit - 11400 kN
Static Thrust Load Limit - 1700 kN
Static Dynamic Load Limit - 2300 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 179.957 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 179.932 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 180.033 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 180.015 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 289.922 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 289.870 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• Outer rings of bearings size 160 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
