MBH3540 RBC

Brand - RBC
Item Number - MBH3540 RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-3540)

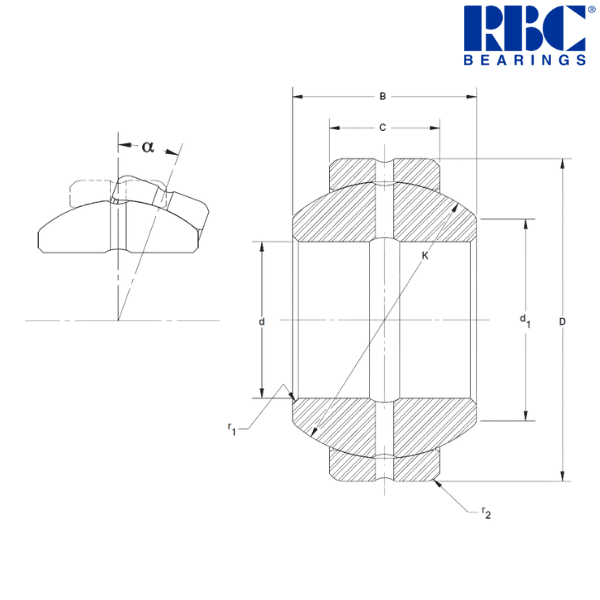

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 35 (-0.012) mm
Nominal Outside Diameter (D) - 62 (-0.013) mm
Nominal Inner Ring Width (B) - 35 (-0.12) mm
Nominal Outer Ring Width (C) - 22 (-0.30) mm
Sphere Diameter (K) - 55 mm
Unmounted Diametral Clearance - 0.07/0.17 mm
Shaft Shoulder Diameter (d1) - 42 mm
Tilt Angle (α) - 16°
Maximum Shaft Fillet (r1) - 0.6 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 0.42 kg
Static Radial Load Limit - 520 kN
Static Thrust Load Limit - 81.7 kN
Static Dynamic Load Limit - 104 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 34.975 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 34.959 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 35.02 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 35.009 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 61.97 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 61.940 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
