MBH5060-SS RBC

Brand - RBC
Item Number - MBH5060-SS RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-5060)

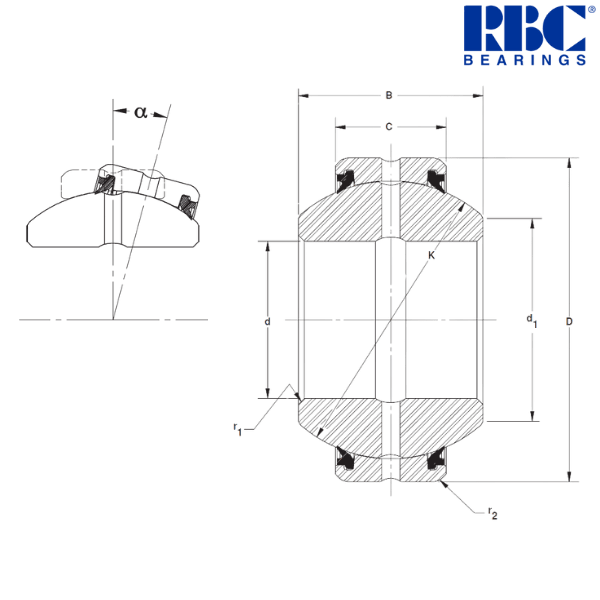

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 50 (-0.012) mm
Nominal Outside Diameter (D) - 90 (-0.015) mm
Nominal Inner Ring Width (B) - 56 (-0.12) mm
Nominal Outer Ring Width (C) - 36 (-0.40) mm
Sphere Diameter (K) - 81 mm
Unmounted Diametral Clearance - 0.10/0.20 mm
Shaft Shoulder Diameter (d1) - 58 mm
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 0.6 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 1.46 kg
Static Radial Load Limit - 1250 kN
Static Thrust Load Limit - 219 kN
Static Dynamic Load Limit - 250 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 49.975 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 49.959 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 50.02 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 50.009 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 89.962 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 89.927 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
