MBH7080 RBC

Brand - RBC
Item Number - MBH7080 RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-7080)

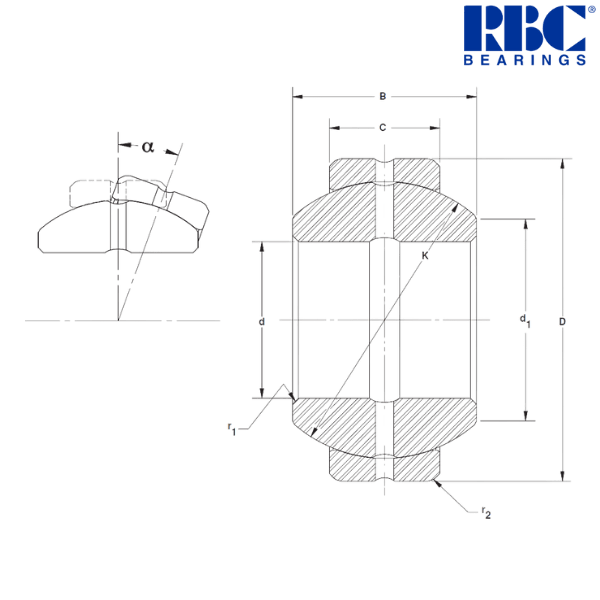

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 70 (-0.015) mm
Nominal Outside Diameter (D) - 120 (-0.015) mm
Nominal Inner Ring Width (B) - 70 (-0.15) mm
Nominal Outer Ring Width (C) - 45 (-0.40) mm
Sphere Diameter (K) - 107 mm
Unmounted Diametral Clearance - 0.10/0.20 mm
Shaft Shoulder Diameter (d1) - 81 mm
Tilt Angle (α) - 16°
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 3.1 kg
Static Radial Load Limit - 2070 kN
Static Thrust Load Limit - 342 kN
Static Dynamic Load Limit - 410 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 69.97 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 69.951 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 70.024 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 70.011 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 119.959 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 119.924 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
