N 1013 KTN/SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1013 KTN/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 65
Outside Diameter (D) mm - 100
Width (B) mm - 18
Basic Dynamic Load Rating (C) kN - 44.6
Basic Static Load Rating (C0) kN - 58.5
Fatigue Load Limit (Pu) kN - 6.8
Attainable Speeds Grease Lubrication (r/min) - 10000
Attainable Speeds Oil-Air Lubrication (r/min) - 11000
Weight (kg) - 0.44
Shoulder Diameter Inner Ring (d1) mm - 78.2
Raceway Diameter Outer Ring (E) mm - 91
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 2.5

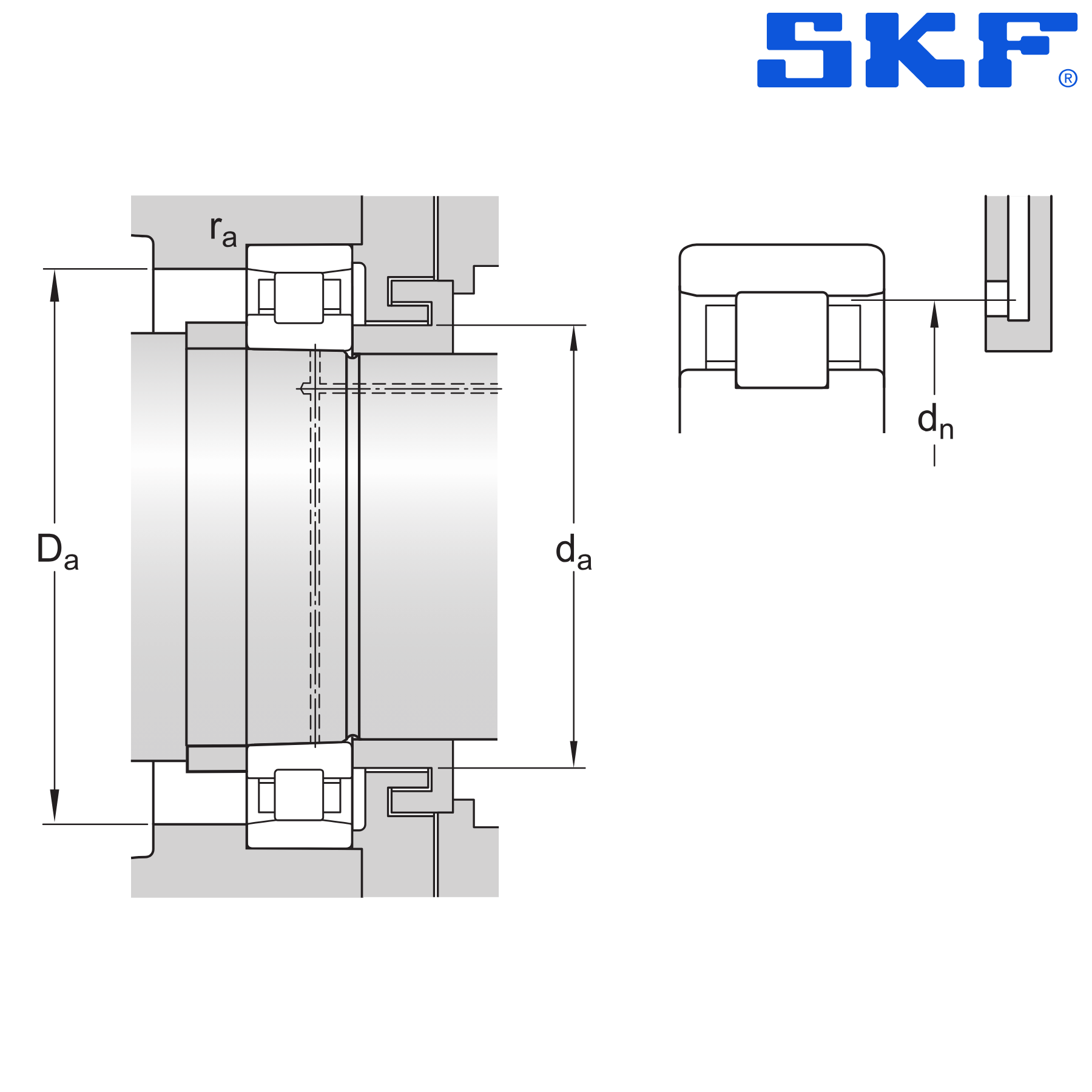

Minimum Abutment Diameter Shaft (da) mm - 71.5
Minimum Abutment Diameter Housing (Da) mm - 92
Maximum Abutment Diameter Housing (Da) mm - 93.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 89.7
Reference Grease Quantity (Gref) mm - 5

** Image is for representation purposes only
