N 1018 KTN9/SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1018 KTN9/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 90
Outside Diameter (D) mm - 140
Width (B) mm - 24
Basic Dynamic Load Rating (C) kN - 79.2
Basic Static Load Rating (C0) kN - 108
Fatigue Load Limit (Pu) kN - 12.9
Attainable Speeds Grease Lubrication (r/min) - 7000
Attainable Speeds Oil-Air Lubrication (r/min) - 8000
Weight (kg) - 1.2
Shoulder Diameter Inner Ring (d1) mm - 109.4
Raceway Diameter Outer Ring (E) mm - 127
Minimum Chamfer Dimension (r1, r2) mm - 1.5
Minimum Chamfer Dimension (r3, r4) mm - 1
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3

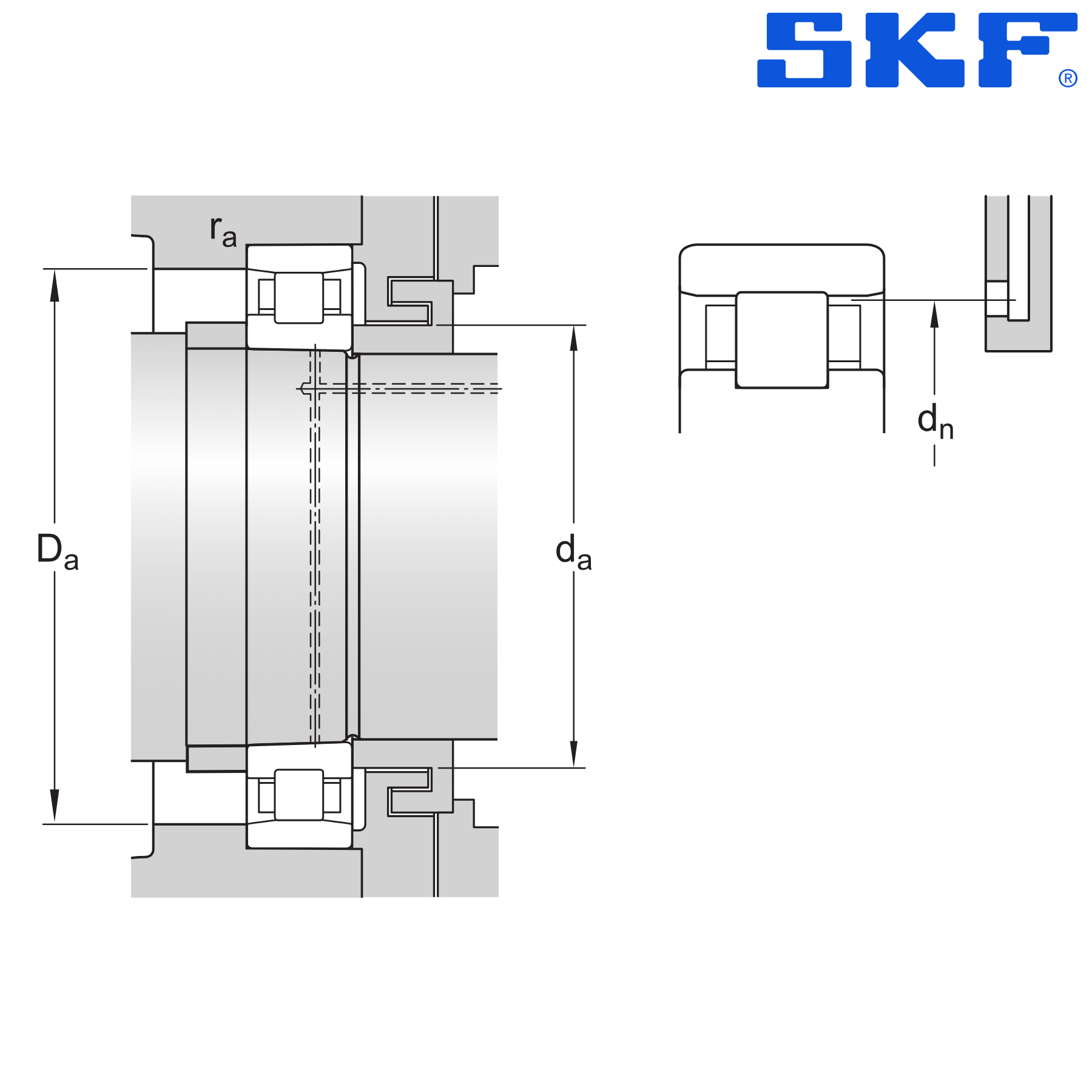

Minimum Abutment Diameter Shaft (da) mm - 98
Minimum Abutment Diameter Housing (Da) mm - 129
Maximum Abutment Diameter Housing (Da) mm - 132
Maximum Radius of Fillet (ra) mm - 1.5
Position of Oil Nozzle (dn) mm - 125.4
Reference Grease Quantity (Gref) mm - 12

** Image is for representation purposes only
