N 1020 KTNHA/SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1020 KTNHA/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 100
Outside Diameter (D) mm - 150
Width (B) mm - 24
Basic Dynamic Load Rating (C) kN - 85.8
Basic Static Load Rating (C0) kN - 120
Fatigue Load Limit (Pu) kN - 14.3
Attainable Speeds Grease Lubrication (r/min) - 9500
Attainable Speeds Oil-Air Lubrication (r/min) - 13000
Weight (kg) - 1.3
Shoulder Diameter Inner Ring (d1) mm - 119.4
Raceway Diameter Outer Ring (E) mm - 137
Minimum Chamfer Dimension (r1, r2) mm - 1.5
Minimum Chamfer Dimension (r3, r4) mm - 1
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s1) mm - 1

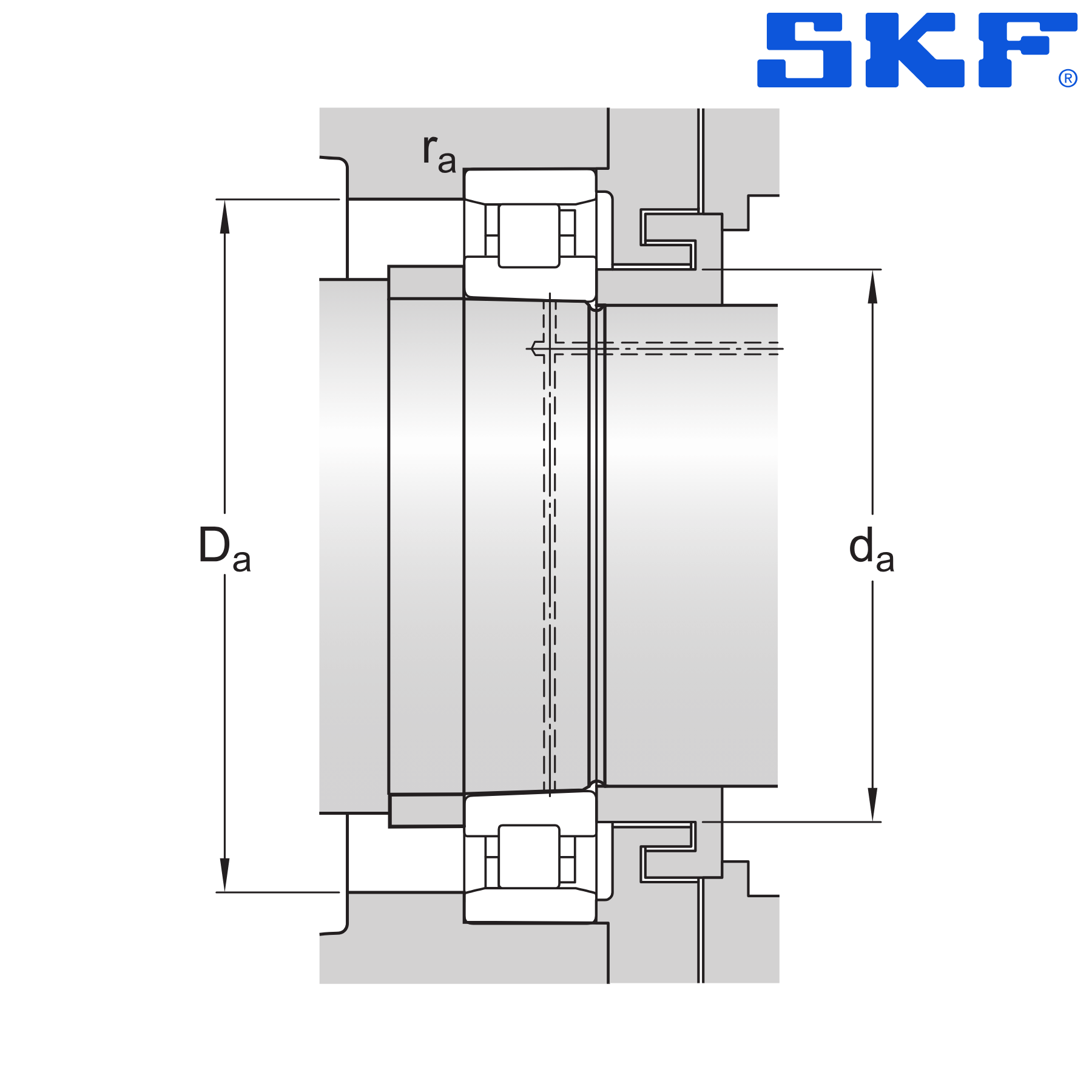

Minimum Abutment Diameter Shaft (da) mm - 108
Minimum Abutment Diameter Housing (Da) mm - 139
Maximum Abutment Diameter Housing (Da) mm - 142
Maximum Radius of Fillet (ra) mm - 1.5
Reference Grease Quantity (Gref) mm - 14

** Image is for representation purposes only
