| Outer Diameter | 850.0 mm |
| Height | 360.0 mm |
| Bearing Weight | 1350.0 kg |
| Basic Static Load Rating, Axial | 78290000.0 N |
| Outer Diameter Of Shaft Washer | 850.0 mm |
| Shaft Washer Height | 194.35 mm |
| Spherical Radius | 1500.0 mm |
| Maximum Housing Chamfer Diameter | 0.0 mm |
Description

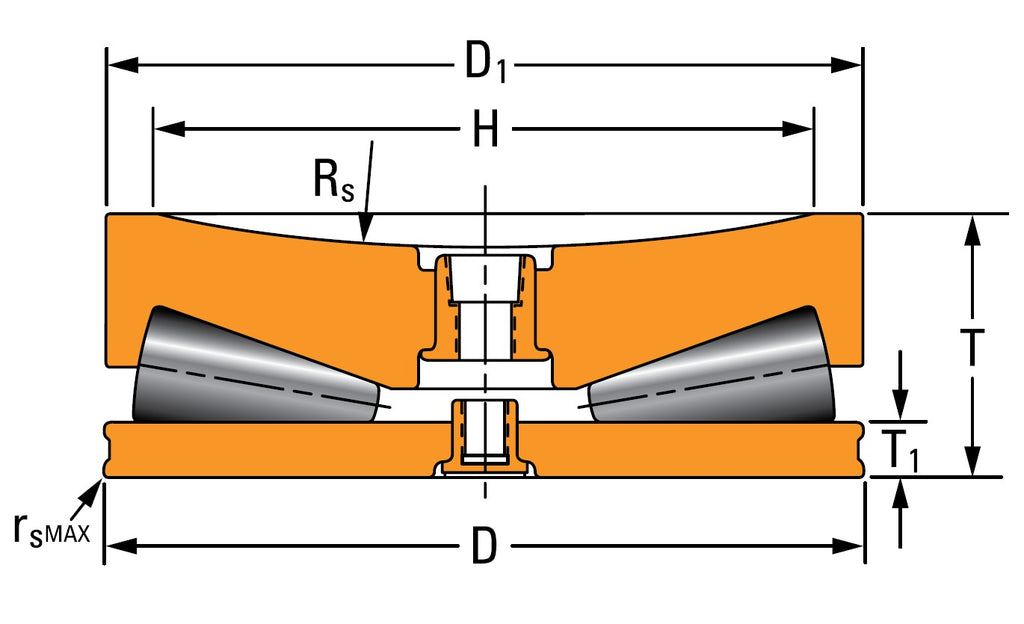

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
Built to endure the massive forces of metal rolling, the Timken TTHDFLSV-1 is a high-performance thrust tapered roller bearing. This variant utilizes a special concave upper race profile, making it ideal for specialized screw-down systems requiring targeted load distribution.
-
Industry Specific: Designed specifically for metals industry rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design to withstand extreme forces.
-
Unique Profile: Features one upper tapered race engineered with a special concave profile.
-
Base Design: Comes with one standard lower flat race.
** Images are for representation purposes only
