Description
Brand - FAG
Item Number - N1010-D-K-PVPA1-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 0.27
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 80
Width (B) mm - 16
Minimum Chamfer Dimension (rmin) mm - 0.6
Minimum Chamfer Dimension (r1min) mm - 72.5

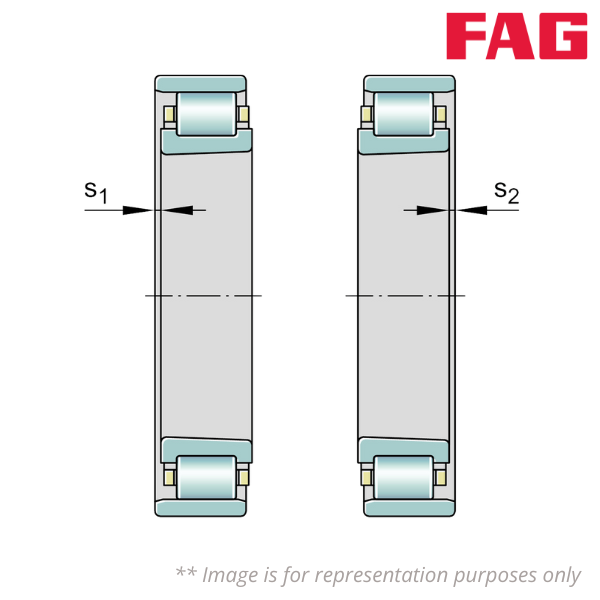

Axial Displacement (s1) mm - 1.2
Axial Displacement (s2) mm - 3.1

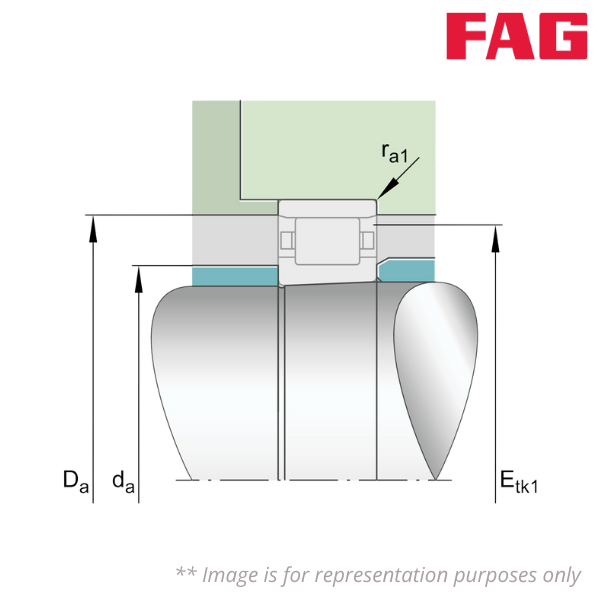

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 58.5
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 73.6
Basic Dynamic Load Rating, Radial (Cr) N - 36500
Basic Static Load Rating, Radial (C0r) N - 36500
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 22800
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 27000
