Description
Brand - FAG
Item Number - N1018-D-K-PVPA1-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 1.2
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 140
Width (B) mm - 24
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 127

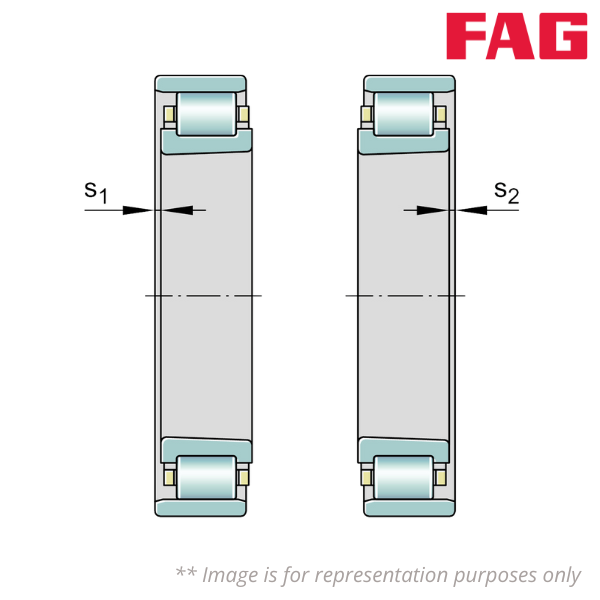

Axial Displacement (s1) mm - 2.2
Axial Displacement (s2) mm - 4.4
Diameter Shaft Shoulder Clearance - h12

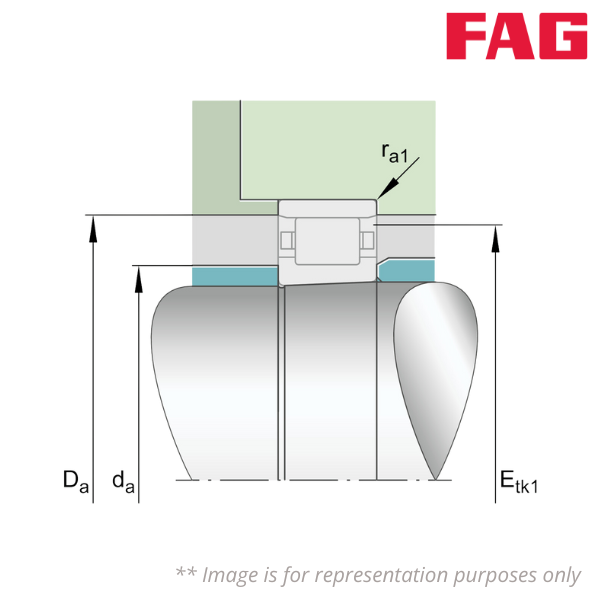

Diameter Shaft Shoulder (da) mm - 105
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 128.5
Basic Dynamic Load Rating, Radial (Cr) N - 89000
Basic Static Load Rating, Radial (C0r) N - 100000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 12700
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 15000
