Description
Brand - FAG
Item Number - N1032-K-M1-SP FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 5.76
Inner Diameter (d) mm - 160
Outer Diameter (D) mm - 240
Width (B) mm - 38
Minimum Chamfer Dimension (rmin) mm - 1.5
Minimum Chamfer Dimension (r1min) mm - 220

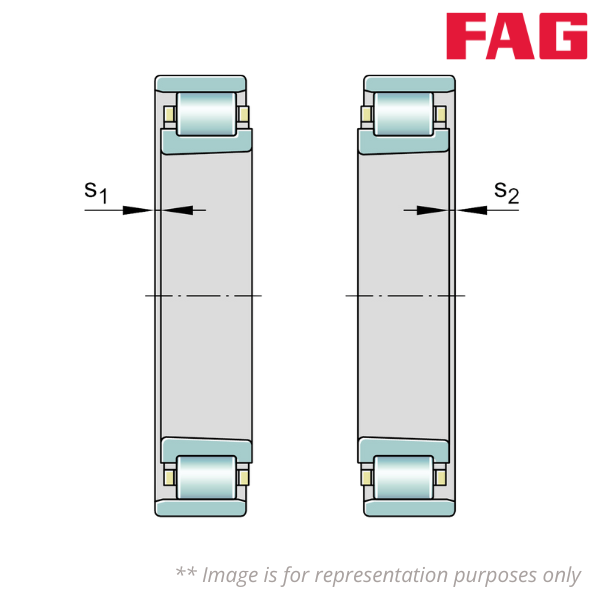

Axial Displacement (s1) mm - 4.6
Axial Displacement (s2) mm - 4.6

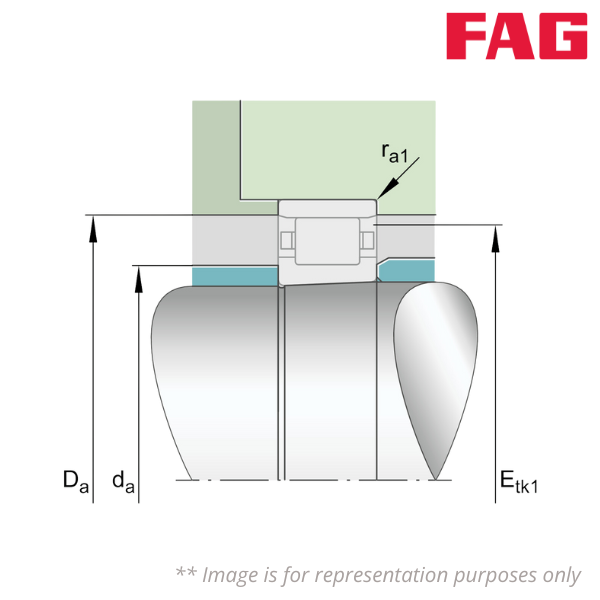

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 180
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 222.4
Basic Dynamic Load Rating, Radial (Cr) N - 245000
Basic Static Load Rating, Radial (C0r) N - 355000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 3900
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 4600
