Description
Brand - FAG
Item Number - N1038-K-M1-SP FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 10.6
Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 290
Width (B) mm - 46
Minimum Chamfer Dimension (rmin) mm - 2.1
Minimum Chamfer Dimension (r1min) mm - 265

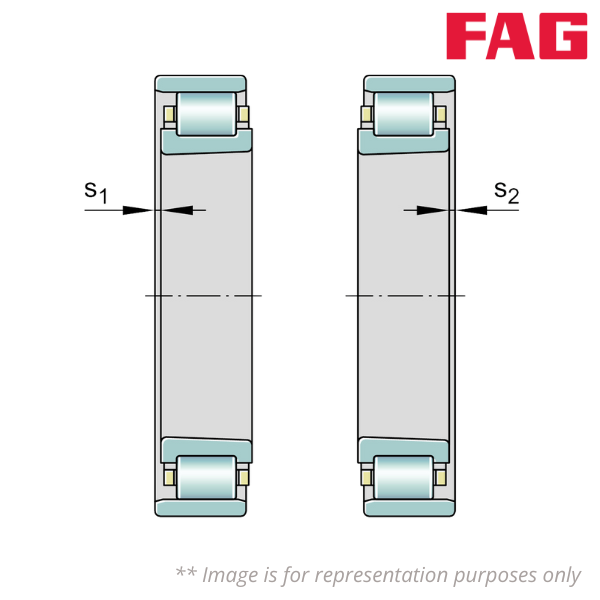

Axial Displacement (s1) mm - 5.6
Axial Displacement (s2) mm - 5.6

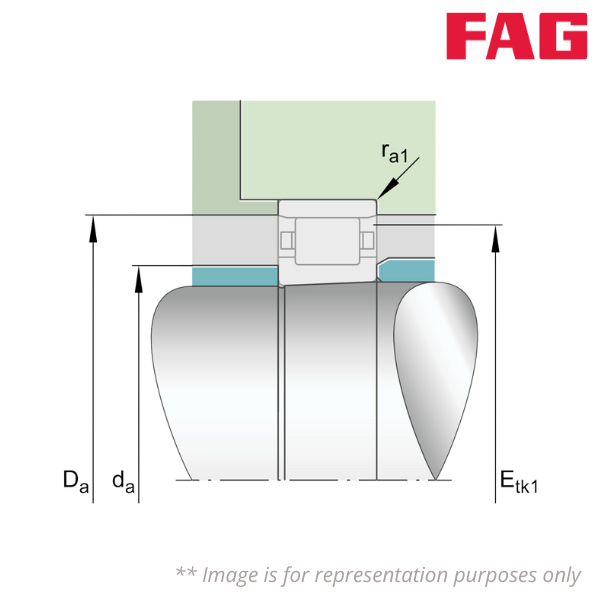

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 215
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 267.8
Basic Dynamic Load Rating, Radial (Cr) N - 370000
Basic Static Load Rating, Radial (C0r) N - 550000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 3200
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 3750
