Description
Brand - NADELLA
Item Number - NA 22025 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 47 mm
Width (B) - 30 mm
Dimension (Fw) - 33.5 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 52 kN
Static Load Rating (C0) - 94 kN
Speed Rating with Oil - 11000 rpm
Speed Rating with Grease - 7200 rpm
Weight - 0.17 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

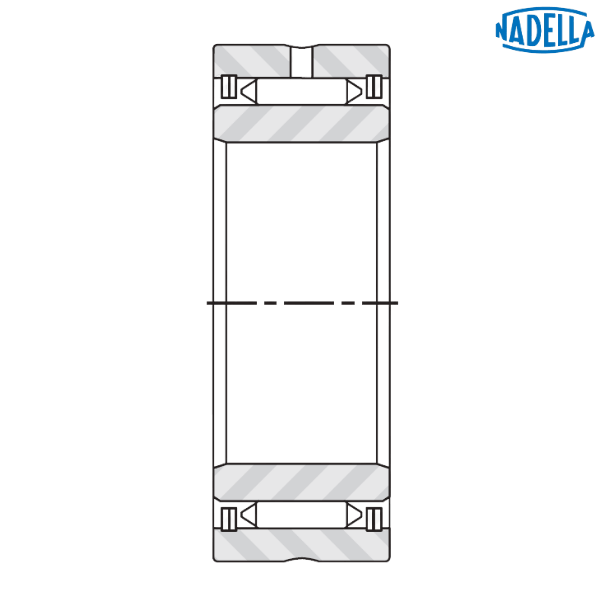

♦ ♦ Images are for representation purposes only
Item Number - NA 22025 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 47 mm
Width (B) - 30 mm
Dimension (Fw) - 33.5 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 52 kN
Static Load Rating (C0) - 94 kN
Speed Rating with Oil - 11000 rpm
Speed Rating with Grease - 7200 rpm
Weight - 0.17 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
