NA050XP0 RBC

Brand - RBC
Item Number - NA050XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Bearing

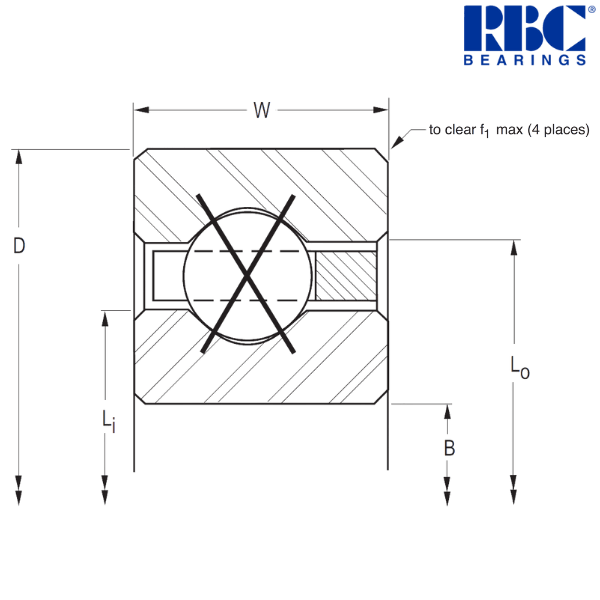

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.9998 inch
Outside Diameter (D) - 5.5003 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 5.188 inch
Land Diameter of Outer Ring (Lo) - 5.313 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 63 pcs.
Approximate Weight - 0.24 lbs
Radial Static Load - 1590 lbf
Radial Dynamic Load - 859 lbf
Thrust Static Load - 3980 lbf
Thrust Dynamic Load - 1680 lbf
Moment Static Load - 4180 lbf
Moment Dynamic Load - 1760 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 126.995 mm
Outside Diameter (D) - 139.708 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 131.78 mm
Land Diameter of Outer Ring (Lo) - 134.95 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.109 kg
Radial Static Load - 7070 N
Radial Dynamic Load - 3820 N
Thrust Static Load - 17700 N
Thrust Dynamic Load - 7470 N
Moment Static Load - 470 Nm
Moment Dynamic Load - 200 Nm

Description of Suffixes and Prefixes :
N - No seals or shields
A - Standard Width
X - 4-Point Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.
