NG200AR0 RBC

Brand - RBC
Item Number - NG200AR0*RBC

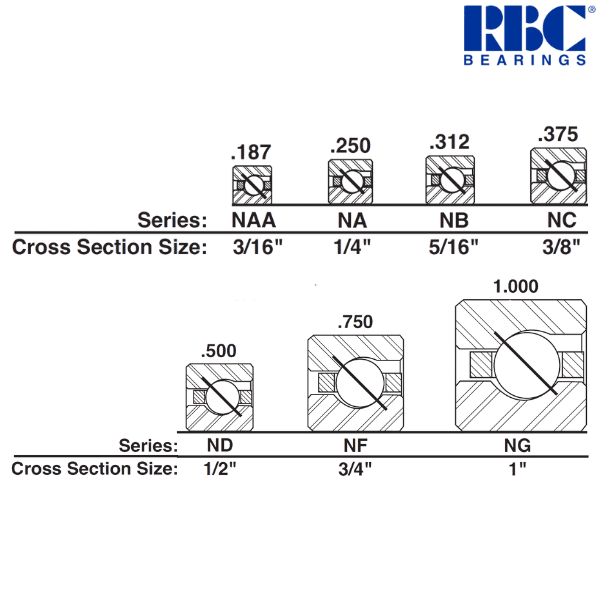

Category - Angular Contact, A-Type Thin Section Ball Bearings

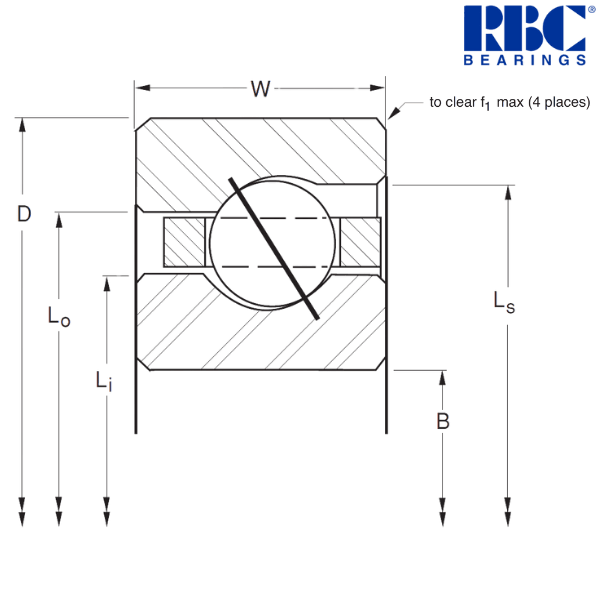

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 19.9998 inch
Outside Diameter (D) - 22.0003 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 20.75 inch
Land Diameter of Outer Ring (Lo) - 21.25 inch
Land Diameter of Counter Bore (Ls) - 21.5 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 84 pcs.
Approximate Weight - 15.8 lbs
Radial Static Load - 39810 lbf
Radial Dynamic Load - 13612 lbf
Thrust Static Load - 114900 lbf
Thrust Dynamic Load - 38830 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 507.995 mm
Outside Diameter (D) - 558.808 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 527.05 mm
Land Diameter of Outer Ring (Lo) - 539.75 mm
Land Diameter of Counter Bore (Ls) - 546.1 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 7.167 kg
Radial Static Load - 177080 N
Radial Dynamic Load - 60550 N
Thrust Static Load - 511100 N
Thrust Dynamic Load - 172720 N

Description of Suffixes and Prefixes :
N - No seals or shields
G - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

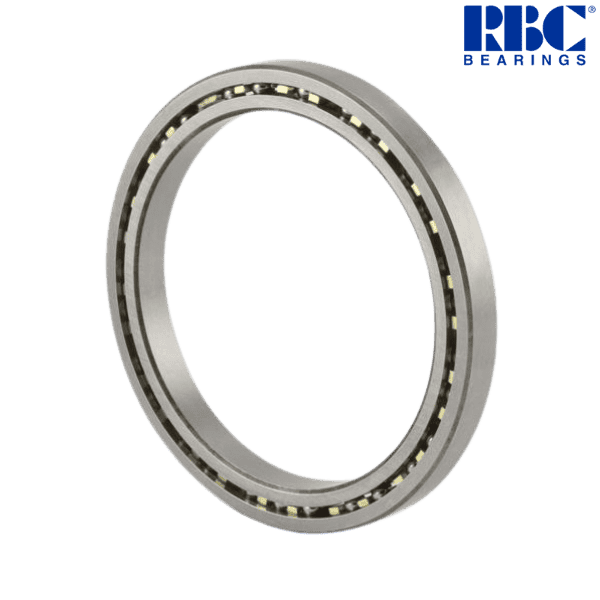

♦ ♦ Images are for representation purposes only
