Description
Brand - NEW WAY
Item Number - NS-DF-1 NEW WAY
Category - Double Faced Seals
Maximum Angular Misalignment - 2.5°
Porous Media Material - Carbon Graphite
Housing Material - 316 Stainless Steel, FDA Compliant Materials Available
O-ring Materials - Fluoroelastomer
Imperial :
Minimum Shaft Size (inch) - 0.7
Maximum Shaft Size (inch) - 1.02
Outside Diameter (inch) - 3.42
Axial Height (inch) - 1.42
Radial Runout (inch) - 0.13
Cavity Pressure (psi) - 45
Metric :
Minimum Shaft Size (mm) - 18
Maximum Shaft Size (mm) - 26
Outside Diameter (mm) - 87
Axial Height (mm) - 36
Radial Runout (mm) - 3
Cavity Pressure (bar) - 3

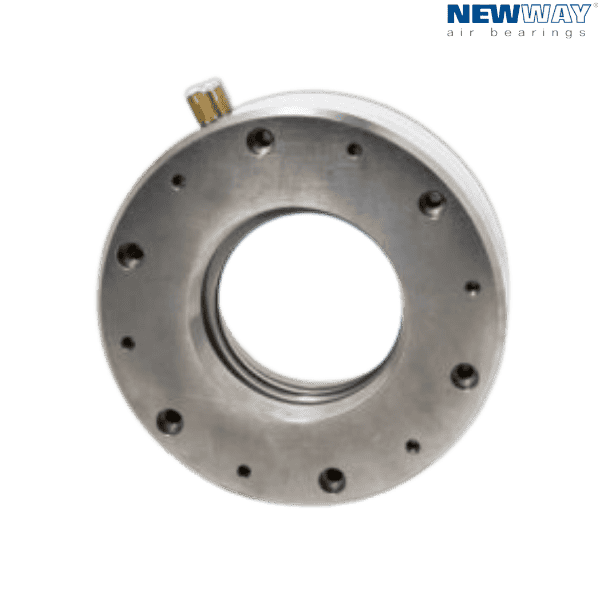

** Image is for representation puroses only
