Description
Brand - NADELLA
Item Number - NTA40-18.5-750 NADELLA
Category - Telescopic Rails Partial Extension

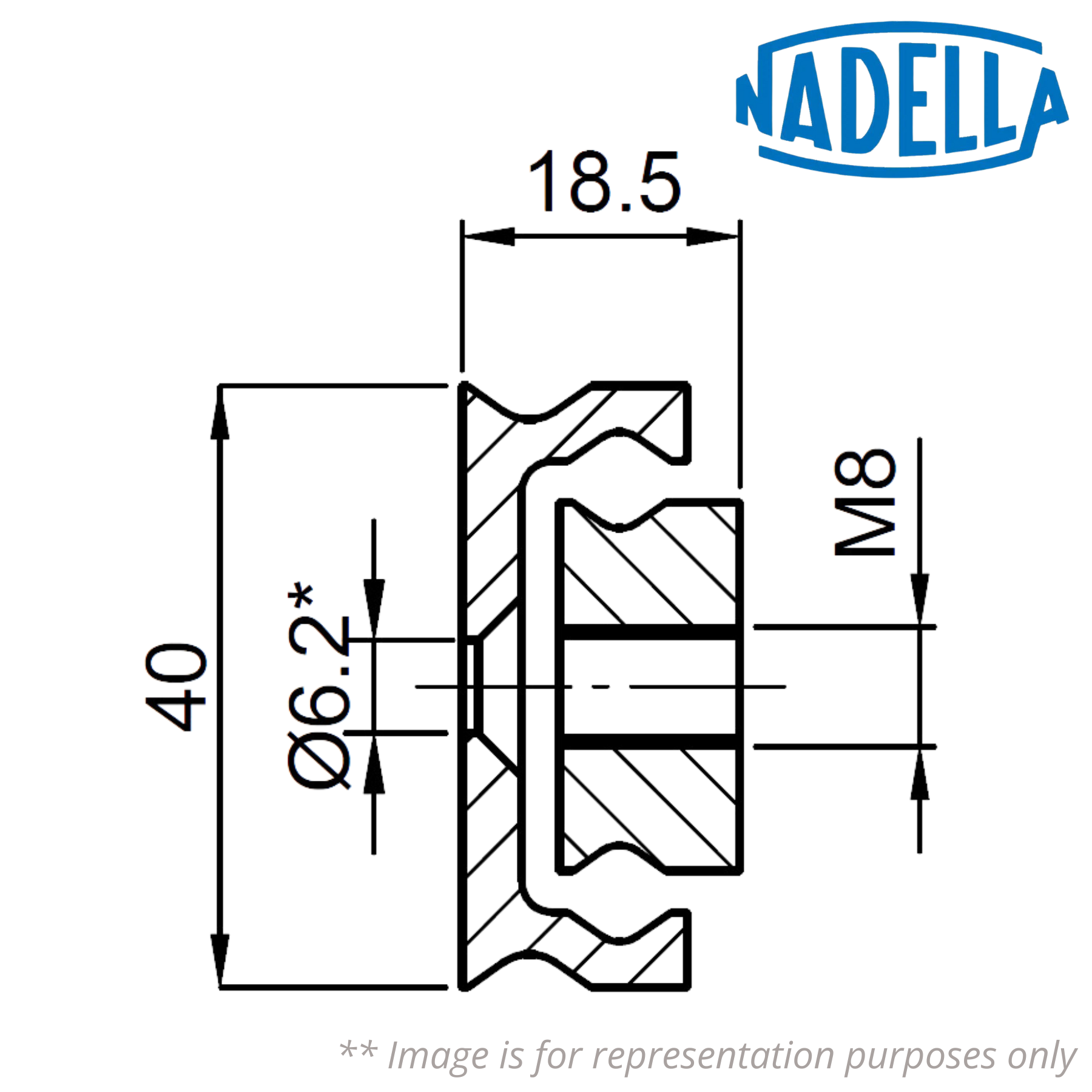

Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 250 mm
Length (L) - 750 mm
Extension (E) - 490 mm
Load Capacity for Pair of Rails (Cy) - 2250 N
Load Capacity for Pair of Rails (Cz) - 1125 N
Net Weight - 3.2 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
Item Number - NTA40-18.5-750 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 250 mm
Length (L) - 750 mm
Extension (E) - 490 mm
Load Capacity for Pair of Rails (Cy) - 2250 N
Load Capacity for Pair of Rails (Cz) - 1125 N
Net Weight - 3.2 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
