Description
Brand - NADELLA
Item Number - NTA40-18.5-800 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 275 mm
Length (L) - 800 mm
Extension (E) - 520 mm
Load Capacity for Pair of Rails (Cy) - 2150 N
Load Capacity for Pair of Rails (Cz) - 1075 N
Net Weight - 3.5 kg
Description of Prefix:
NTA - Telescopic rails partial extension

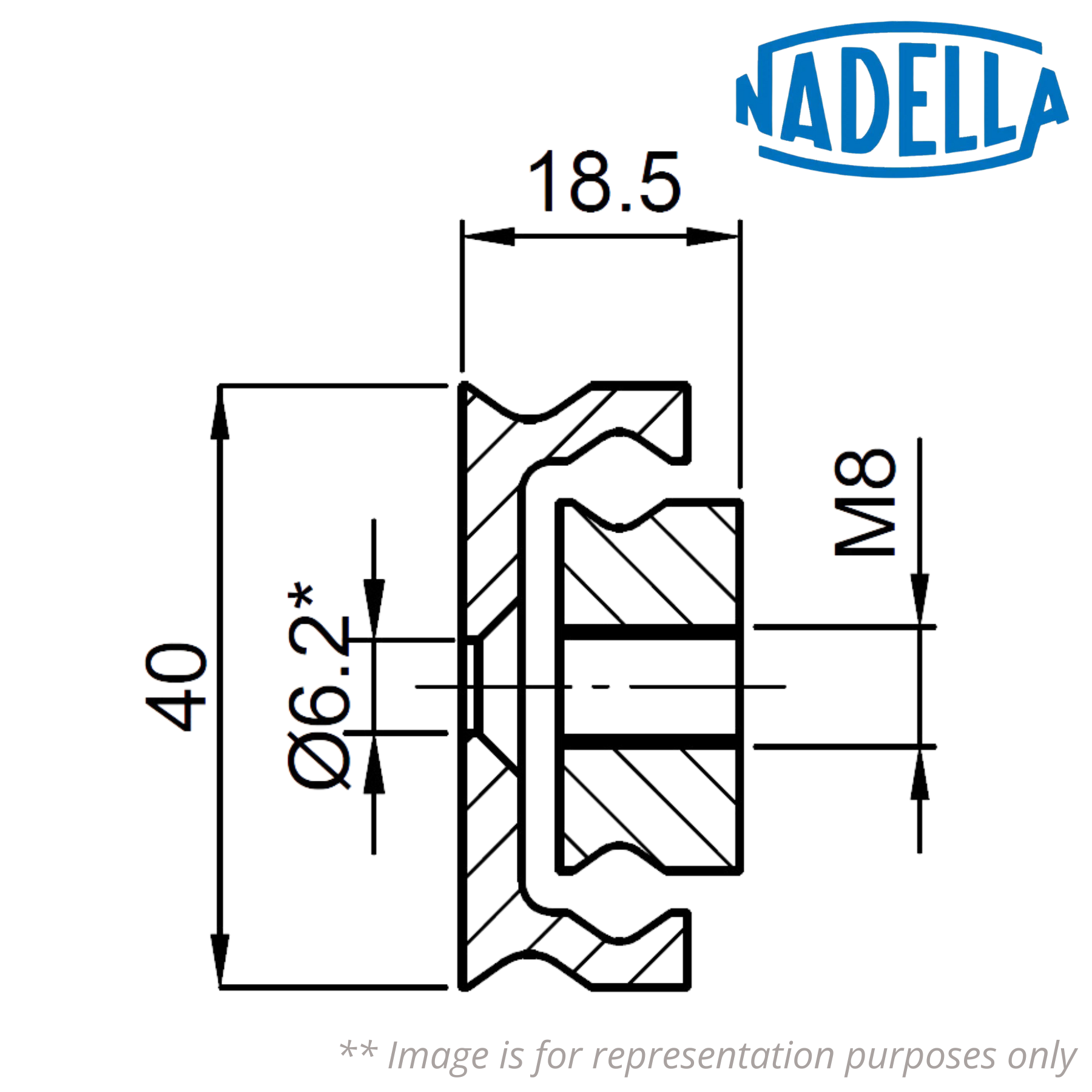

♦♦ Images are for representation purposes only
Item Number - NTA40-18.5-800 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 275 mm
Length (L) - 800 mm
Extension (E) - 520 mm
Load Capacity for Pair of Rails (Cy) - 2150 N
Load Capacity for Pair of Rails (Cz) - 1075 N
Net Weight - 3.5 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
