Description
Brand - NADELLA
Item Number - NTA50-19.5-1100 NADELLA
Category - Telescopic Rails Partial Extension

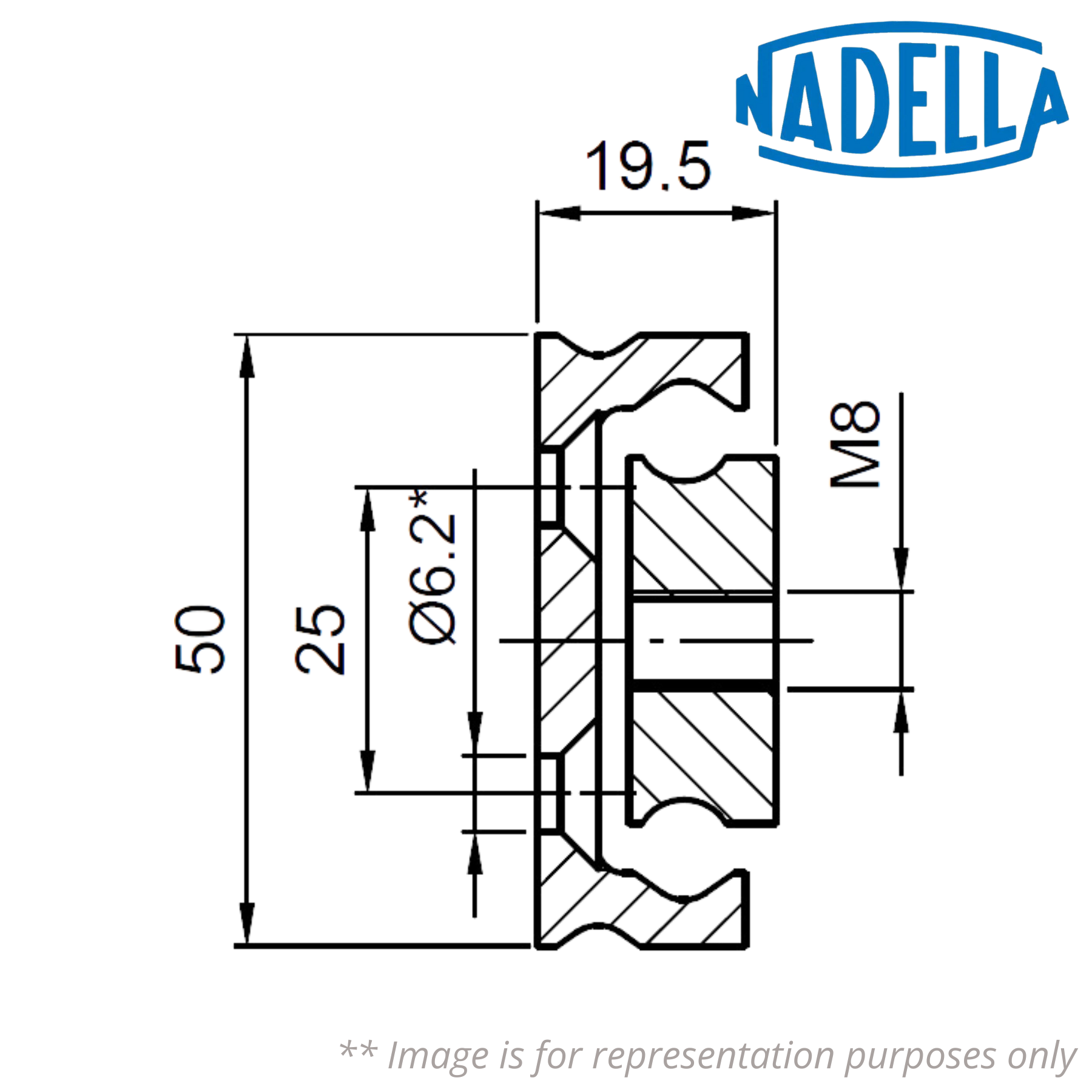

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 1100 mm
Length (L) - 425 mm
Extension (E) - 720 mm
Load Capacity for Pair of Rails (Cy) - 1850 N
Load Capacity for Pair of Rails (Cz) - 925 N
Net Weight - 6.2 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
Item Number - NTA50-19.5-1100 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 1100 mm
Length (L) - 425 mm
Extension (E) - 720 mm
Load Capacity for Pair of Rails (Cy) - 1850 N
Load Capacity for Pair of Rails (Cz) - 925 N
Net Weight - 6.2 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
