Description
Brand - NADELLA
Item Number - NTA50-19.5-650 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 650 mm
Length (L) - 200 mm
Extension (E) - 430 mm
Load Capacity for Pair of Rails (Cy) - 2700 N
Load Capacity for Pair of Rails (Cz) - 1350 N
Net Weight - 3.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension

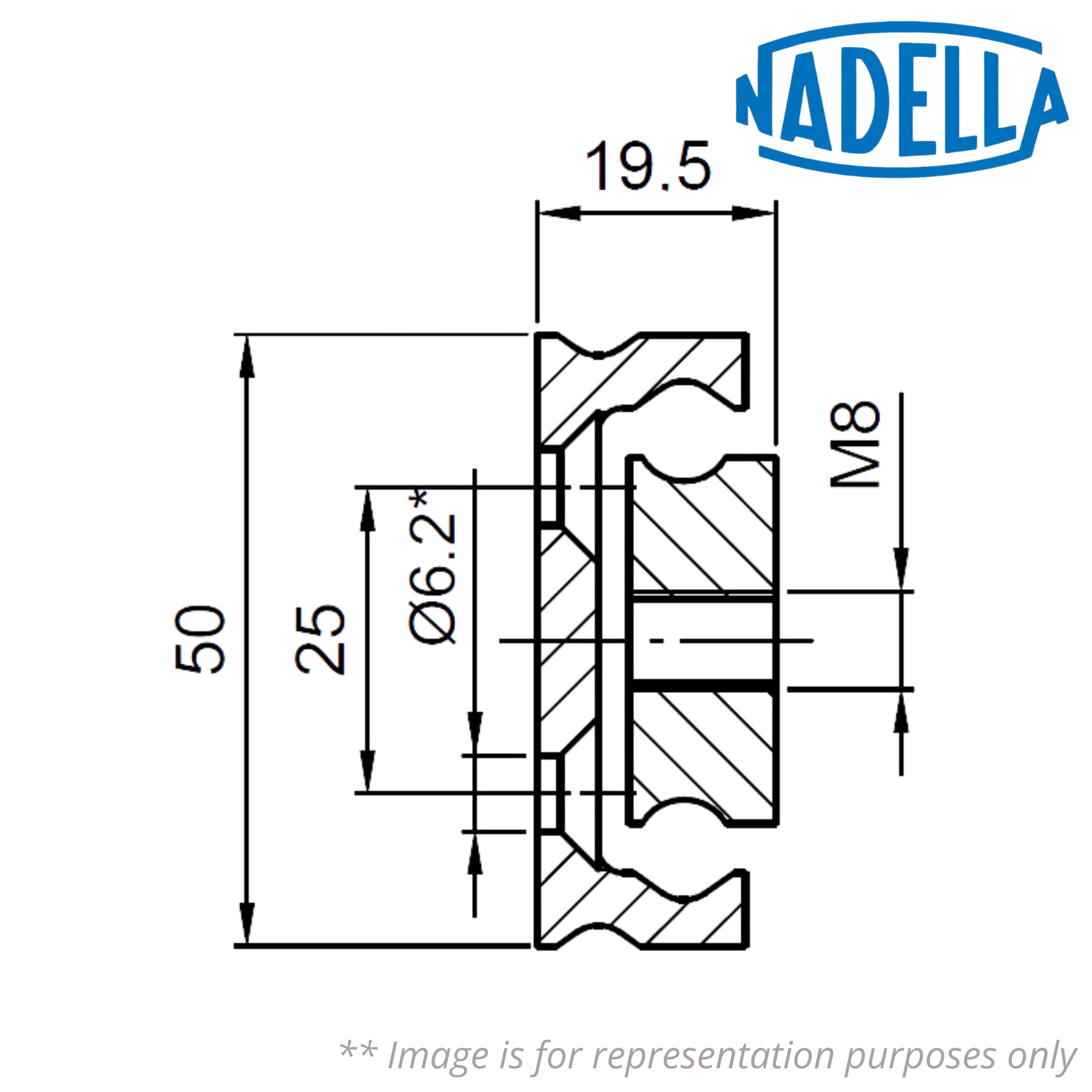

♦♦ Images are for representation purposes only
Item Number - NTA50-19.5-650 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 650 mm
Length (L) - 200 mm
Extension (E) - 430 mm
Load Capacity for Pair of Rails (Cy) - 2700 N
Load Capacity for Pair of Rails (Cz) - 1350 N
Net Weight - 3.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
