Description
Brand - NADELLA
Item Number - NTA59-17.5T-300 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 300 mm
Hole Separation (c) - 100 mm
Extension (E) - 180 mm
Load Capacity for Pair of Rails (Cy) - 2250 N
Load Capacity for Pair of Rails (Cz) - 1125 N
Net Weight - 2 kg
Description of Prefix:
NTA - Telescopic rails partial extension

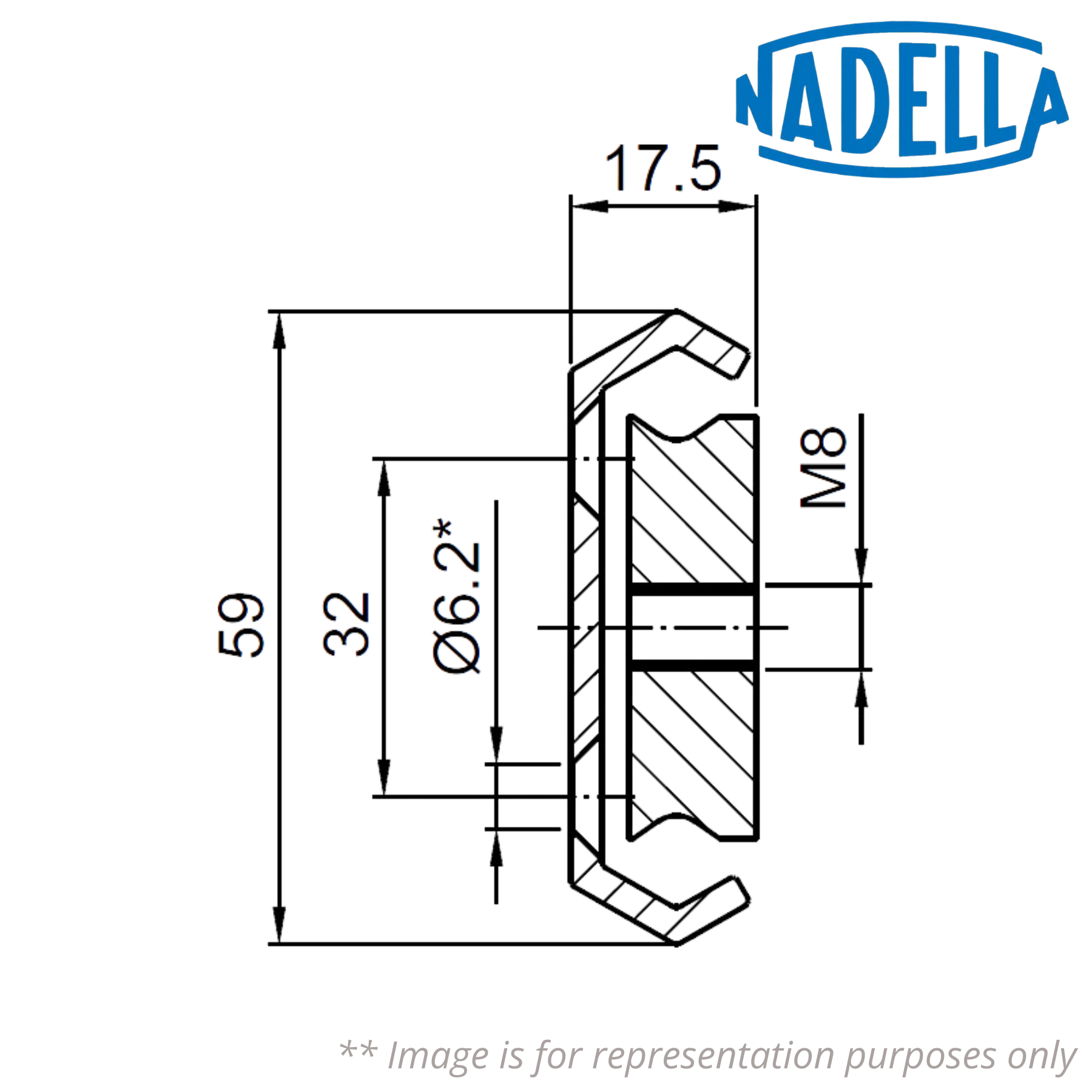

♦♦ Images are for representation purposes only
Item Number - NTA59-17.5T-300 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 300 mm
Hole Separation (c) - 100 mm
Extension (E) - 180 mm
Load Capacity for Pair of Rails (Cy) - 2250 N
Load Capacity for Pair of Rails (Cz) - 1125 N
Net Weight - 2 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
