Description
Brand - NADELLA
Item Number - NTS28-26H-450 NADELLA

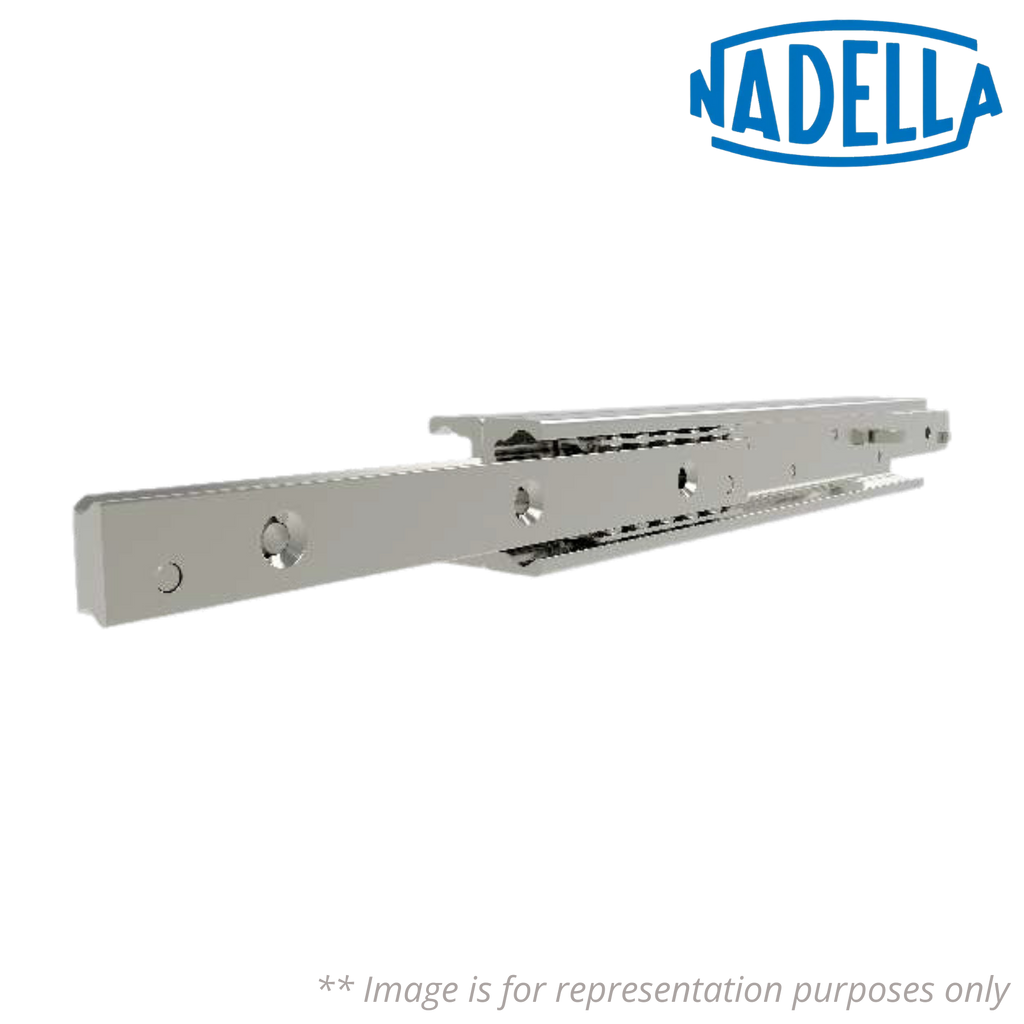

Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 450 mm
Extension (E) - 467 mm
Load Capacity for Pair of Rails (Cy) - 2112 N
Load Capacity for Pair of Rails (Cz) - 908 N
Dynamic Load for Lifetime calculation (Cdyn) - 3940 N
Weight - 1.94 kg
Description of Prefix:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length
♦♦ Images are for representation purposes only
