Description
Brand - NADELLA
Item Number - NTS35-30-800 NADELLA
Category - Telescopic Rail Full Extension Heavy Load
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 275 mm
Length (L) - 800 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 1100 N
Load Capacity for Pair of Rails (Cz) - 550 N
Net Weight - 5 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel

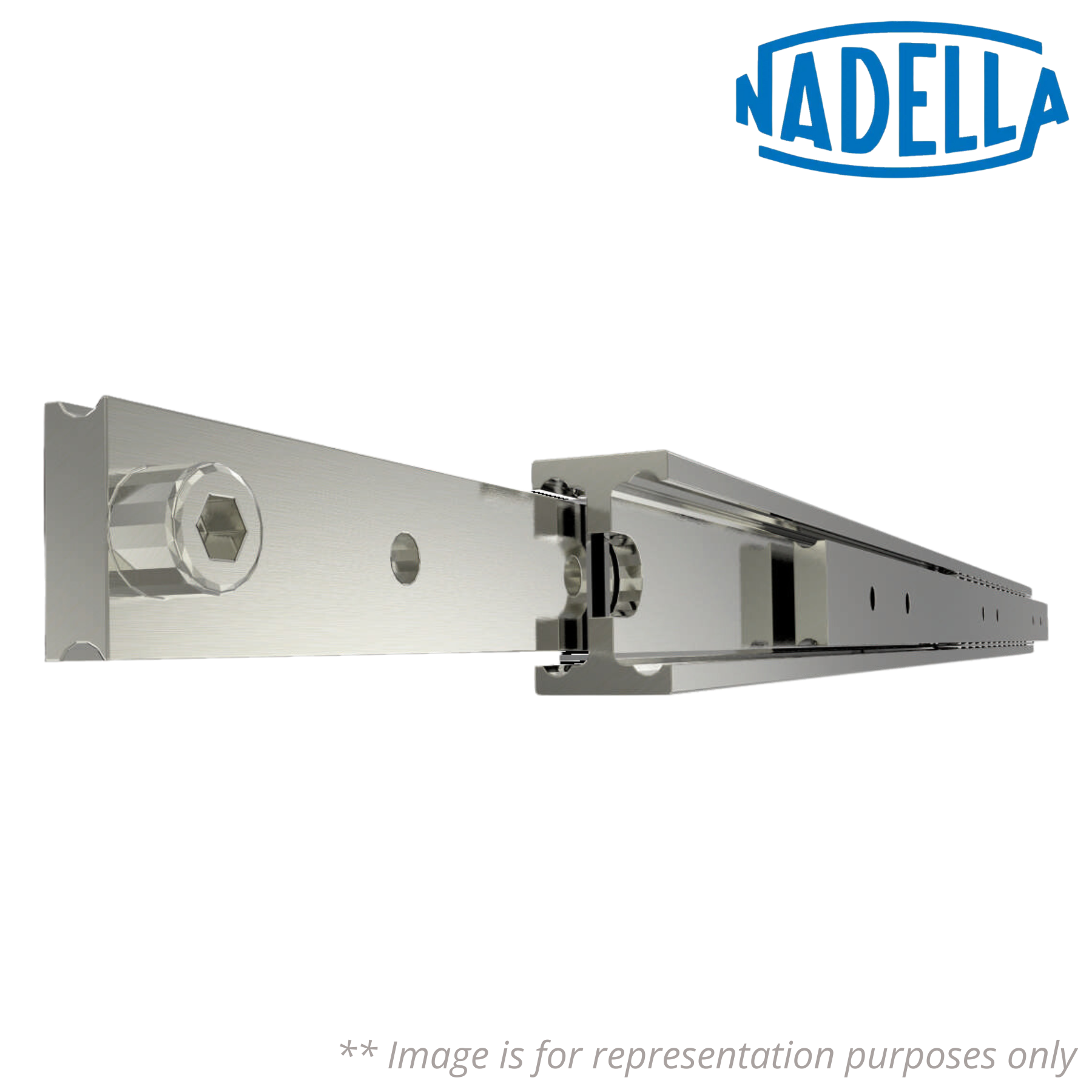

♦♦ Images are for representation purposes only
Item Number - NTS35-30-800 NADELLA
Category - Telescopic Rail Full Extension Heavy Load
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 275 mm
Length (L) - 800 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 1100 N
Load Capacity for Pair of Rails (Cz) - 550 N
Net Weight - 5 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
