Description
Brand - NADELLA
Item Number - NTSF28H-130-530 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 530 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 360 mm
Slider Weight - 0.1053 kg
Guide Weight - 0.5565 kg
Cage Weight - 0.124 kg
NTSF Weight - 0.7858 kg
Load Capacity for Pair of Rails (Cy) - 11561 N
Load Capacity for Pair of Rails (Cz) - 8095 N
Torque Capacity for Single Rail (Mx) - 36 Nm
Torque Capacities for Pair of Rails (My) - 176 Nm
Torque Capacities for Pair of Rails (Mz) - 252 Nm
Dynamic Load for Lifetime Calculation (C100) - 16587 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

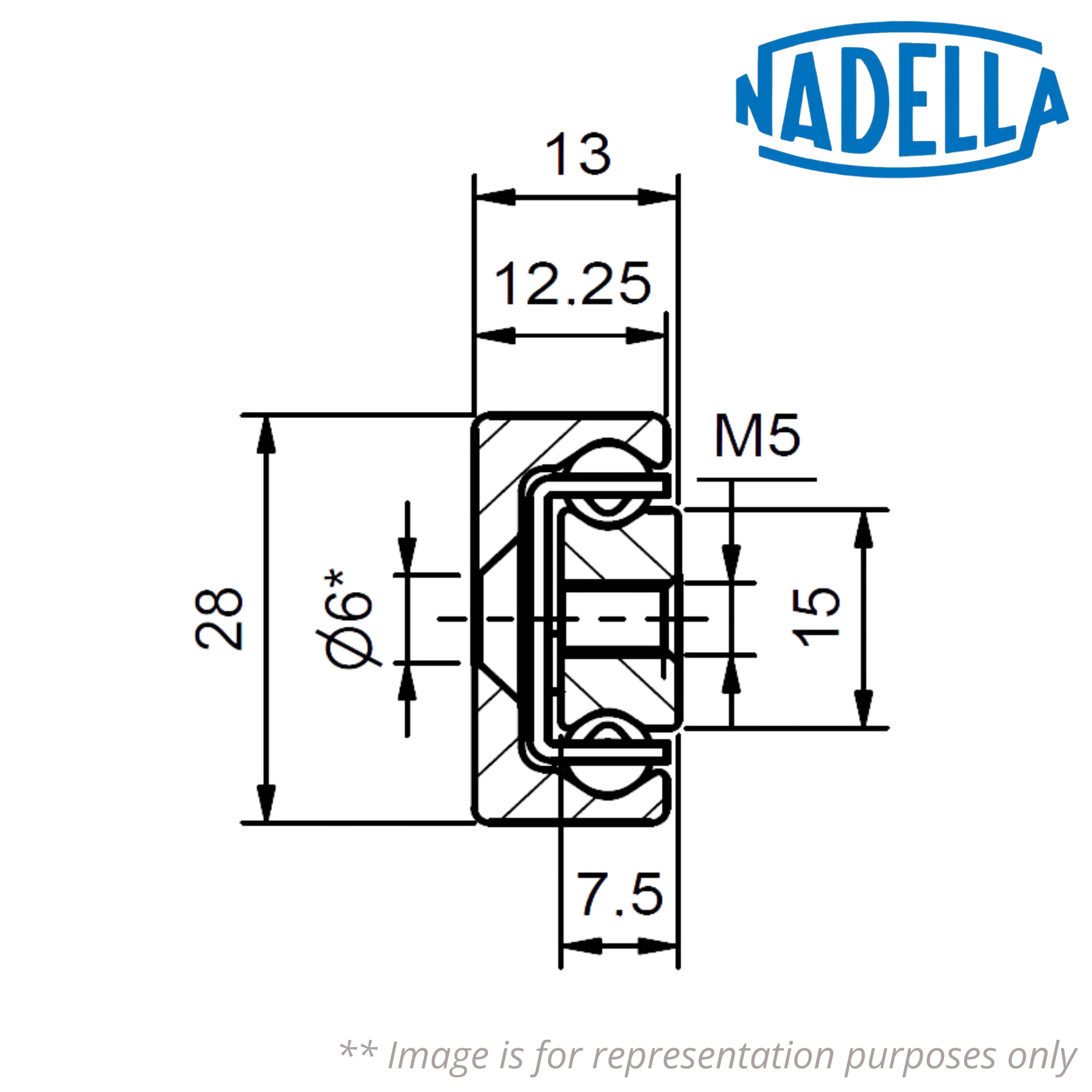

♦♦ Images are for representation purposes only
Item Number - NTSF28H-130-530 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 530 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 360 mm
Slider Weight - 0.1053 kg
Guide Weight - 0.5565 kg
Cage Weight - 0.124 kg
NTSF Weight - 0.7858 kg
Load Capacity for Pair of Rails (Cy) - 11561 N
Load Capacity for Pair of Rails (Cz) - 8095 N
Torque Capacity for Single Rail (Mx) - 36 Nm
Torque Capacities for Pair of Rails (My) - 176 Nm
Torque Capacities for Pair of Rails (Mz) - 252 Nm
Dynamic Load for Lifetime Calculation (C100) - 16587 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
