Description
Brand - NADELLA

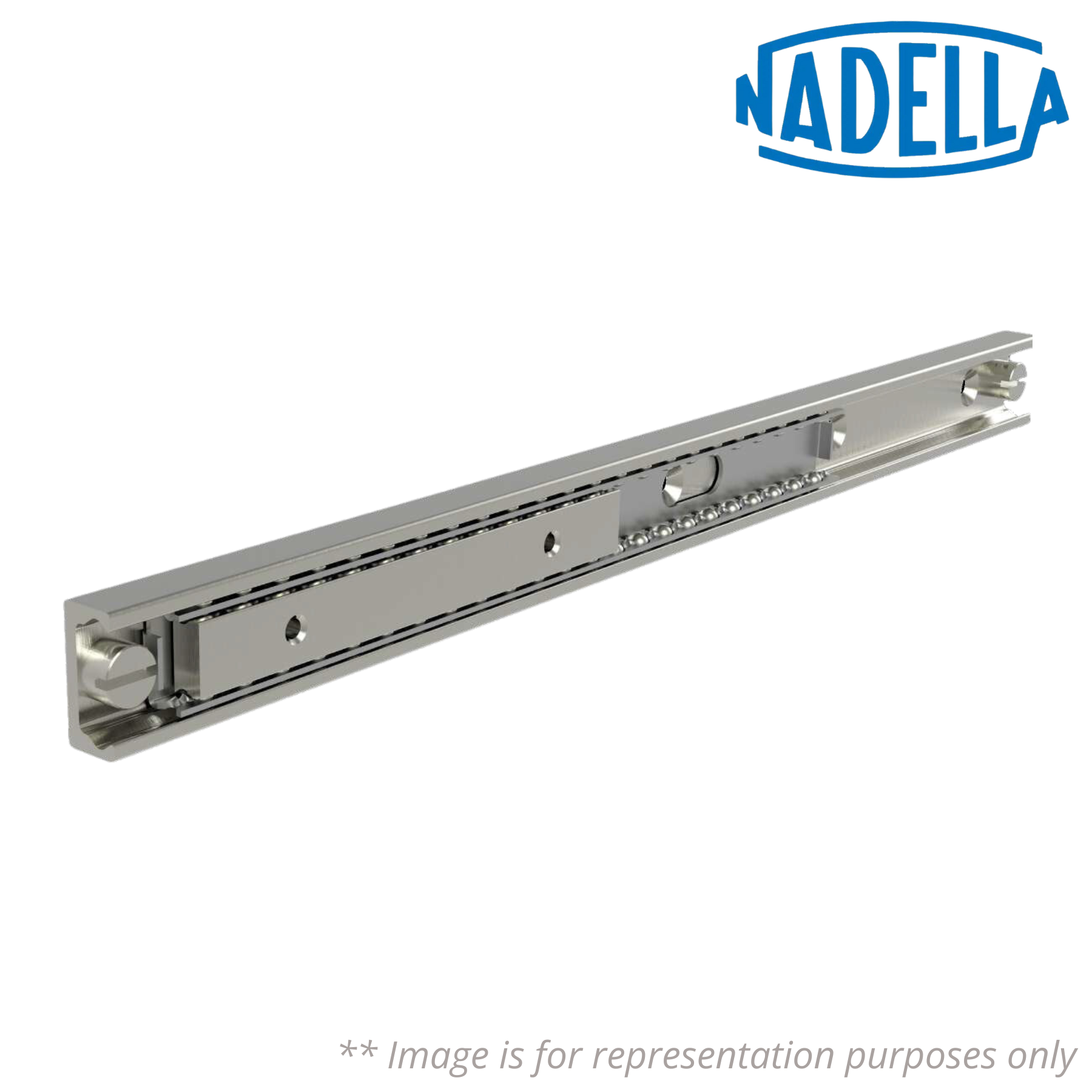

Item Number - NTSF28H-290-690 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

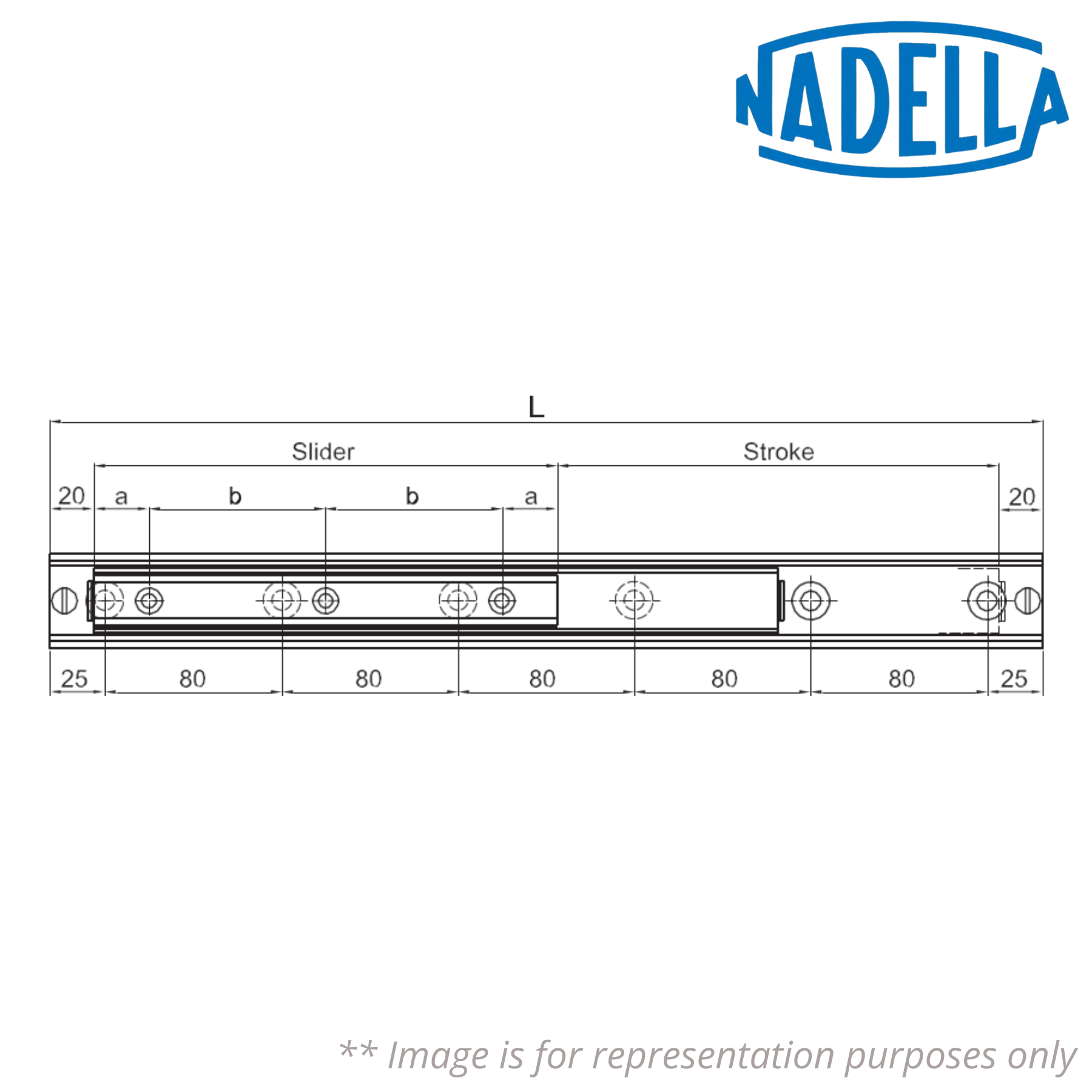

Slider Length (mm) - 290
Rails Length (L) mm - 690
Dimension (a) mm - 25
Dimension (b) mm - 80
Stroke Length (mm) - 360
Slider Weight (kg) - 0.2349
Guide Weight (kg) - 0.7245
Cage Weight (kg) - 0.188
NTSF Weight (kg) - 1.1474
Load Capacity for Pair of Rails (Cy) N - 26975
Load Capacity for Pair of Rails (Cz) N - 18889
Torque Capacity for Single Rail (Mx) Nm - 85
Torque Capacities for Pair of Rails (My) Nm - 912
Torque Capacities for Pair of Rails (Mz) Nm - 1304
Dynamic Load for Lifetime Calculation (C100) N - 30067
