Description
Brand - NADELLA
Item Number - NTSF28H-80-210 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

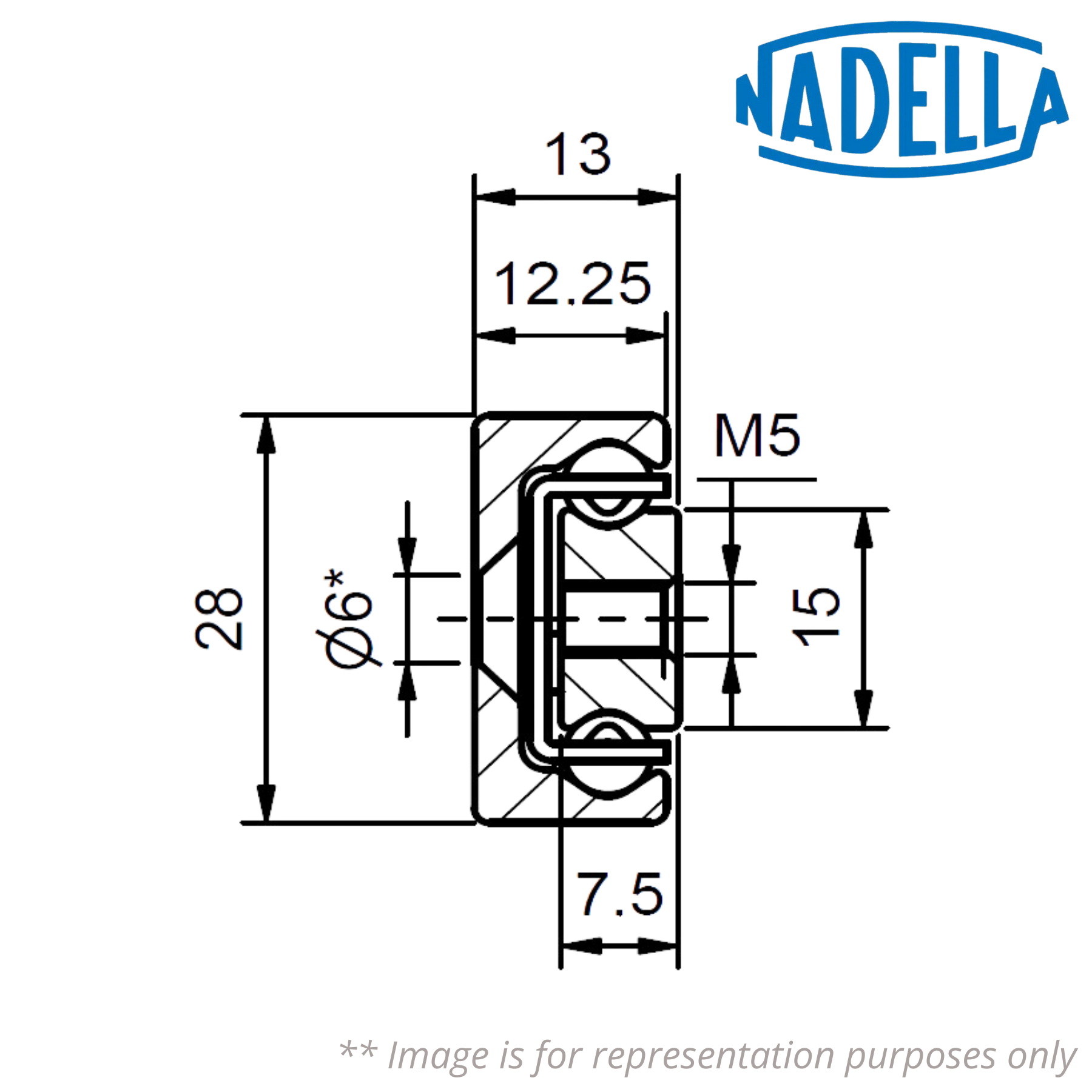

Principal Dimensions & Load Ratings (Metric):
Slider Length - 80 mm
Rail Length (L) - 210 mm
Dimension (a) - 10 mm
Dimension (b) - 20 mm
Stroke Length - 90 mm
Slider Weight - 0.0648 kg
Guide Weight - 0.2205 kg
Cage Weight - 0.05 kg
NTSF Weight - 0.3353 kg
Load Capacity for Pair of Rails (Cy) - 6744 N
Load Capacity for Pair of Rails (Cz) - 4722 N
Torque Capacity for Single Rail (Mx) - 21 Nm
Torque Capacities for Pair of Rails (My) - 64 Nm
Torque Capacities for Pair of Rails (Mz) - 88 Nm
Dynamic Load for Lifetime Calculation (C100) - 11349 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
Item Number - NTSF28H-80-210 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 80 mm
Rail Length (L) - 210 mm
Dimension (a) - 10 mm
Dimension (b) - 20 mm
Stroke Length - 90 mm
Slider Weight - 0.0648 kg
Guide Weight - 0.2205 kg
Cage Weight - 0.05 kg
NTSF Weight - 0.3353 kg
Load Capacity for Pair of Rails (Cy) - 6744 N
Load Capacity for Pair of Rails (Cz) - 4722 N
Torque Capacity for Single Rail (Mx) - 21 Nm
Torque Capacities for Pair of Rails (My) - 64 Nm
Torque Capacities for Pair of Rails (Mz) - 88 Nm
Dynamic Load for Lifetime Calculation (C100) - 11349 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
