Description
Brand - NADELLA
Item Number - NTSF43H-210-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 210 mm
Rail Length (L) - 1170 mm
Stroke Length - 920 mm
Slider Weight - 0.441 kg
Guide Weight - 3.0537 kg
Cage Weight - 0.5159 kg
NTSF Weight - 4.0106 kg
Load Capacity for Pair of Rails (Cy) - 37526 N
Load Capacity for Pair of Rails (Cz) - 26276 N
Torque Capacity for Single Rail (Mx) - 172 Nm
Torque Capacities for Pair of Rails (My) - 614 Nm
Torque Capacities for Pair of Rails (Mz) - 876 Nm
Dynamic Load for Lifetime Calculation (C100) - 56293 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

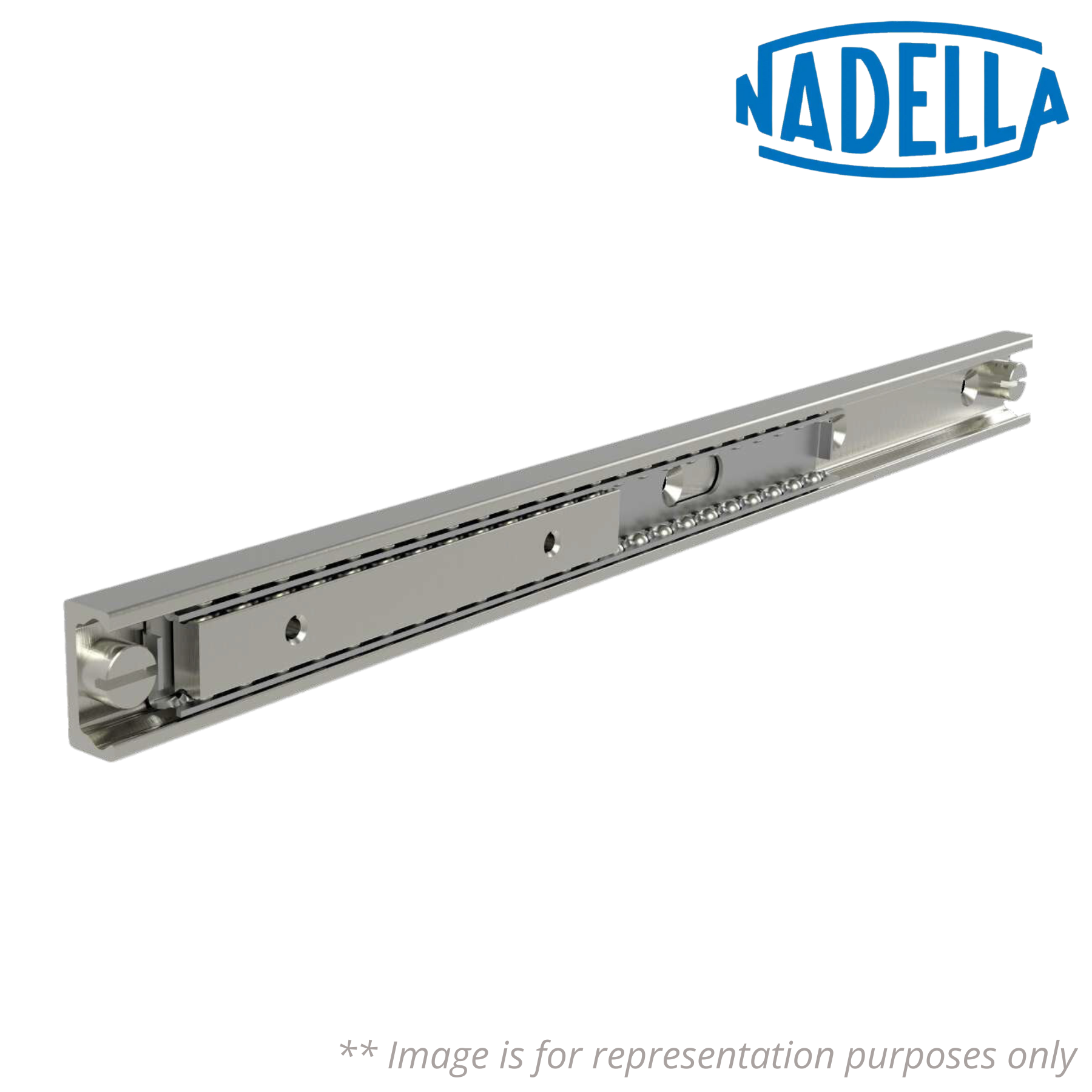

♦♦ Images are for representation purposes only
Item Number - NTSF43H-210-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 210 mm
Rail Length (L) - 1170 mm
Stroke Length - 920 mm
Slider Weight - 0.441 kg
Guide Weight - 3.0537 kg
Cage Weight - 0.5159 kg
NTSF Weight - 4.0106 kg
Load Capacity for Pair of Rails (Cy) - 37526 N
Load Capacity for Pair of Rails (Cz) - 26276 N
Torque Capacity for Single Rail (Mx) - 172 Nm
Torque Capacities for Pair of Rails (My) - 614 Nm
Torque Capacities for Pair of Rails (Mz) - 876 Nm
Dynamic Load for Lifetime Calculation (C100) - 56293 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
