Description
Brand - NADELLA
Item Number - NTSF43H-450-1170 NADELLA

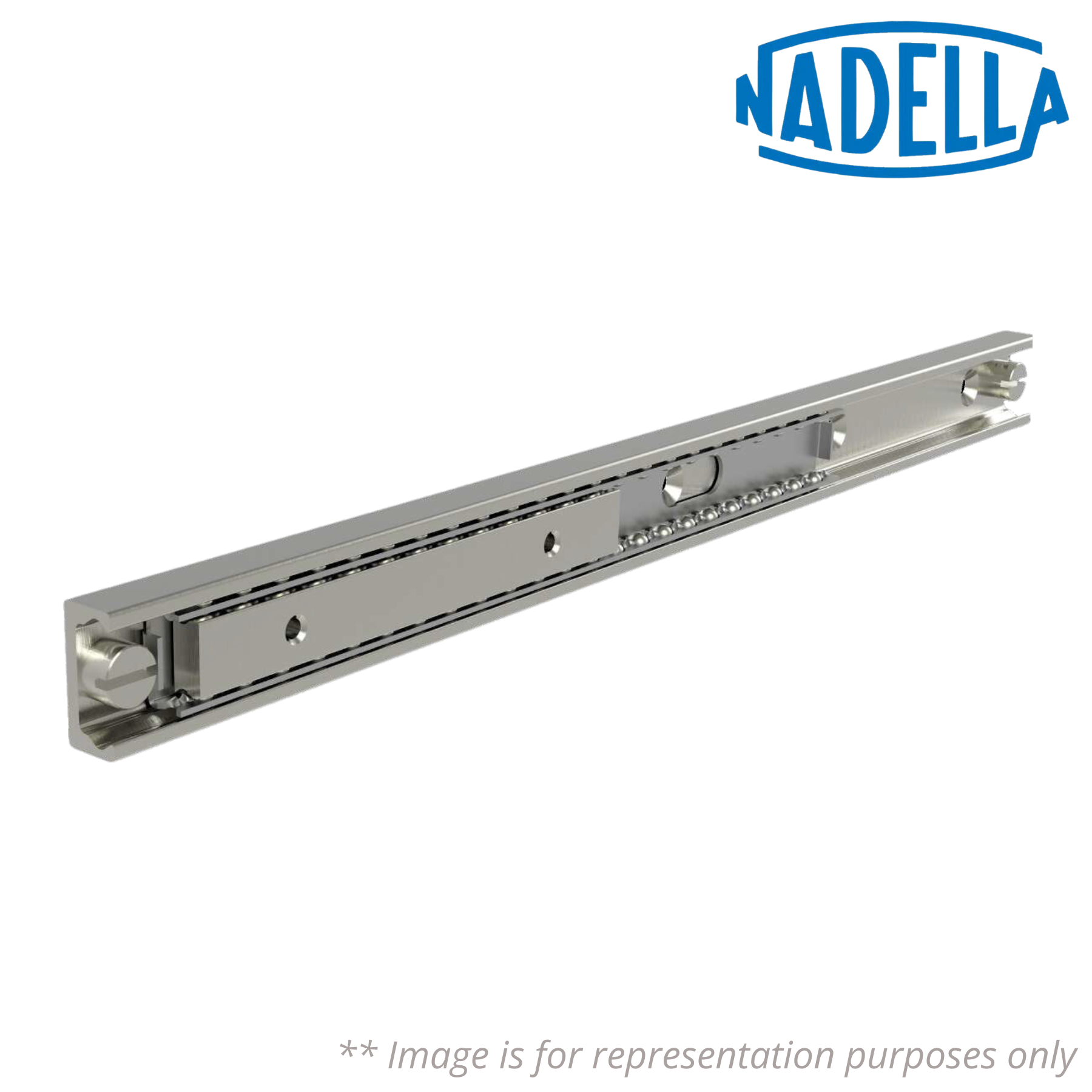

Category - Telescopic Rails Hardened Linear Guide Partial Extension

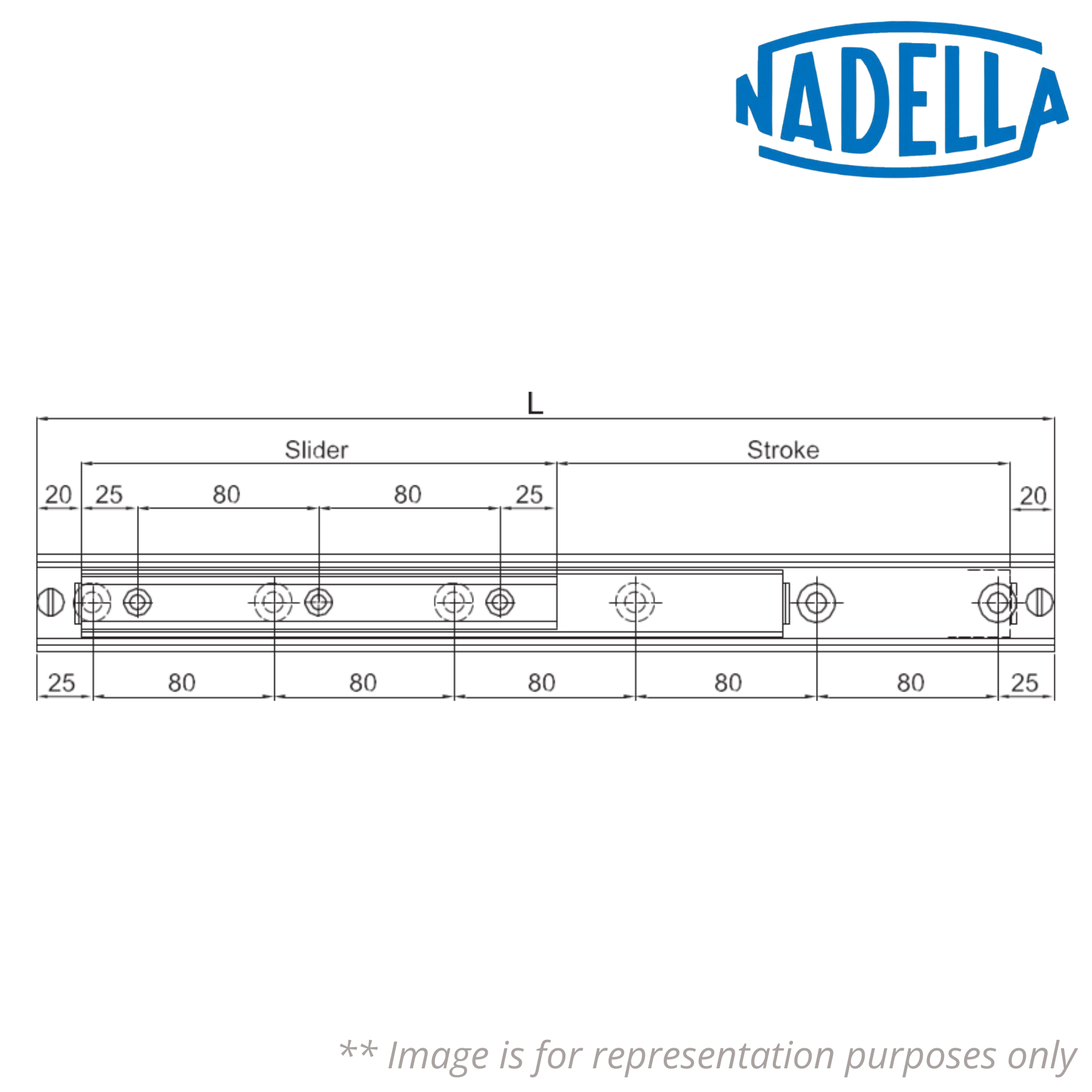

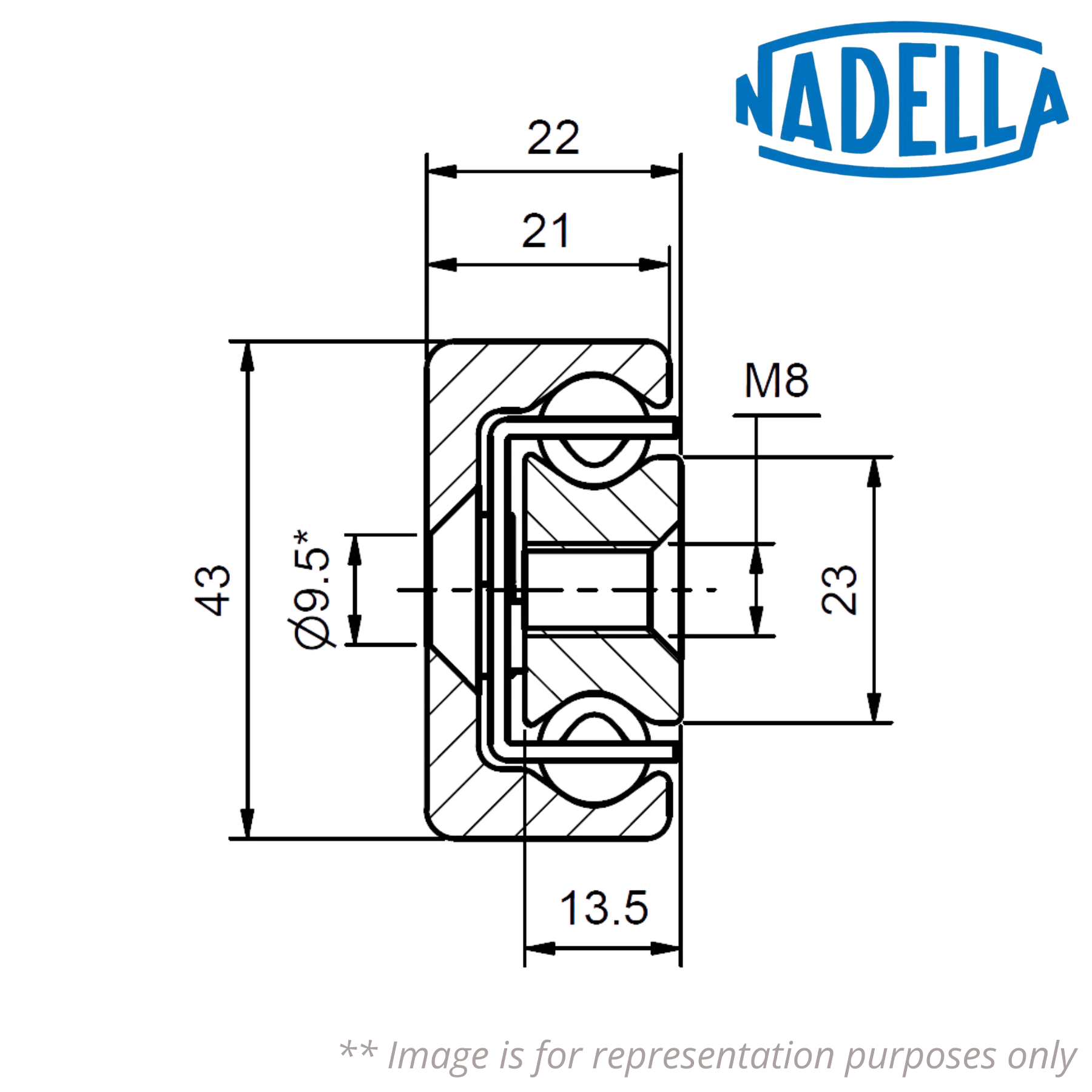

Principal Dimensions & Load Ratings (Metric):
Slider Length - 450 mm
Rail Length (L) - 1170 mm
Stroke Length - 680 mm
Slider Weight - 0.945 kg
Guide Weight - 3.0537 kg
Cage Weight - 0.6083 kg
NTSF Weight - 4.607 kg
Load Capacity for Pair of Rails (Cy) - 83711 N
Load Capacity for Pair of Rails (Cz) - 58615 N
Torque Capacity for Single Rail (Mx) - 383 Nm
Torque Capacities for Pair of Rails (My) - 2930 Nm
Torque Capacities for Pair of Rails (Mz) - 4186 Nm
Dynamic Load for Lifetime Calculation (C100) - 98861 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
Item Number - NTSF43H-450-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 450 mm
Rail Length (L) - 1170 mm
Stroke Length - 680 mm
Slider Weight - 0.945 kg
Guide Weight - 3.0537 kg
Cage Weight - 0.6083 kg
NTSF Weight - 4.607 kg
Load Capacity for Pair of Rails (Cy) - 83711 N
Load Capacity for Pair of Rails (Cz) - 58615 N
Torque Capacity for Single Rail (Mx) - 383 Nm
Torque Capacities for Pair of Rails (My) - 2930 Nm
Torque Capacities for Pair of Rails (Mz) - 4186 Nm
Dynamic Load for Lifetime Calculation (C100) - 98861 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
