Description
Brand - NADELLA
Item Number - NTSF43H-530-1810 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

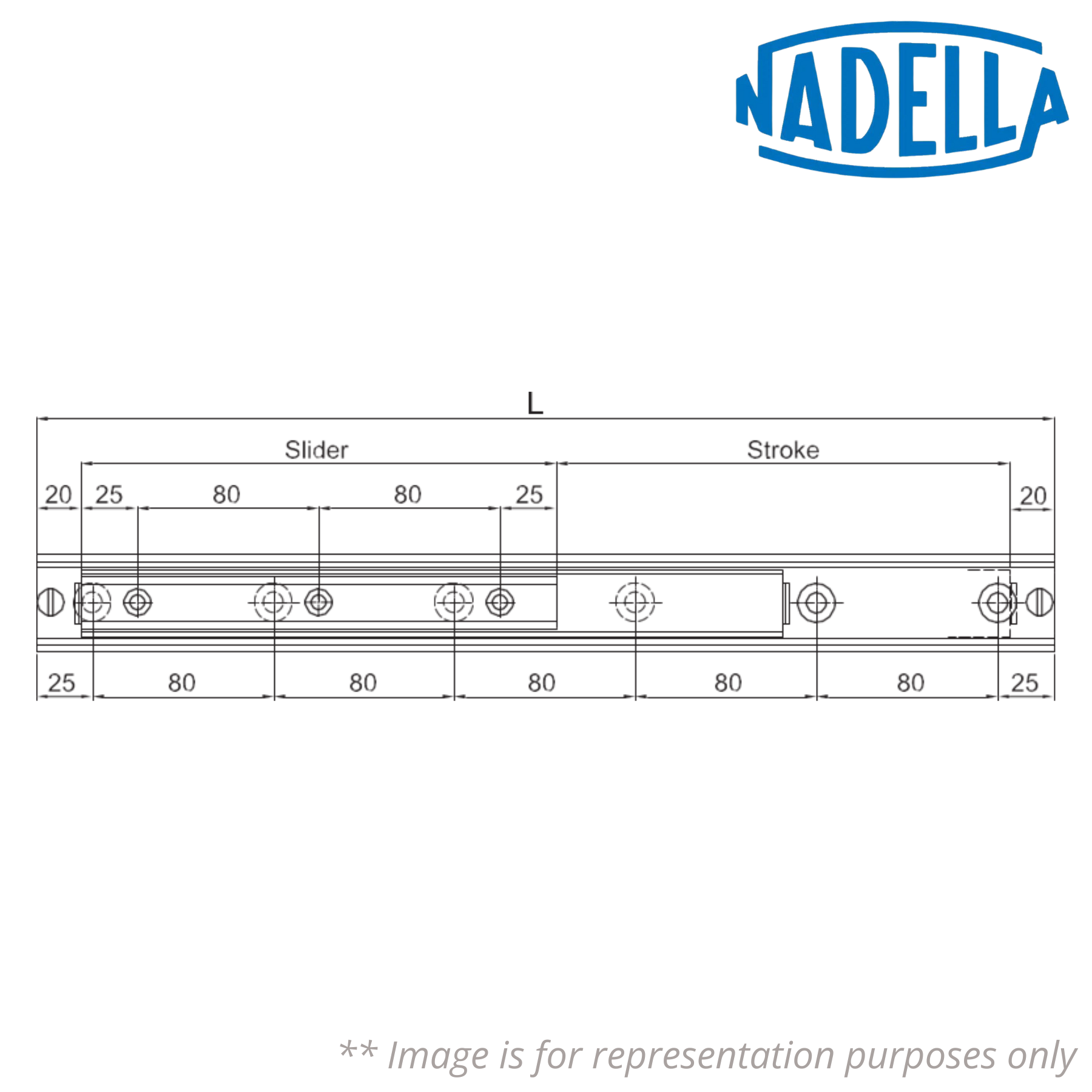

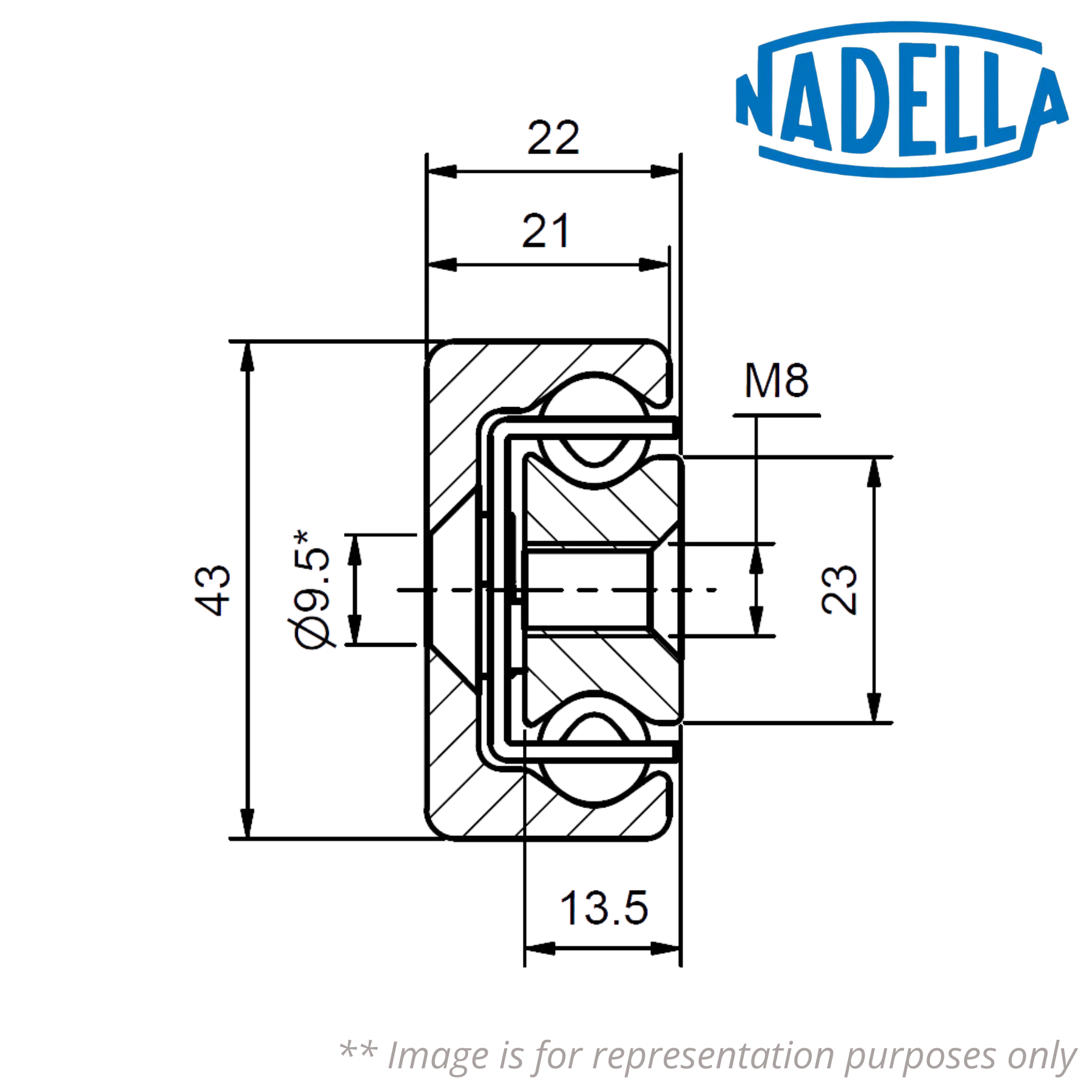

Principal Dimensions & Load Ratings (Metric):
Slider Length - 530 mm
Rail Length (L) - 1810 mm
Stroke Length - 1240 mm
Slider Weight - 1.113 kg
Guide Weight - 4.7241 kg
Cage Weight - 0.8855 kg
NTSF Weight - 6.7226 kg
Load Capacity for Pair of Rails (Cy) - 101031 N
Load Capacity for Pair of Rails (Cz) - 70742 N
Torque Capacity for Single Rail (Mx) - 462 Nm
Torque Capacities for Pair of Rails (My) - 4244 Nm
Torque Capacities for Pair of Rails (Mz) - 6062 Nm
Dynamic Load for Lifetime Calculation (C100) - 112793 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
