Brand - NADELLA
Item Number - NTSF63H-610-1490 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 610 mm
Rail Length (L) - 1490 mm
Stroke Length - 800 mm
Slider Weight - 1.769 kg
Guide Weight - 9.0294 kg
Cage Weight - 1.414 kg
NTSF Weight - 12.2124 kg
Load Capacity for Pair of Rails (Cy) - 173988 N
Load Capacity for Pair of Rails (Cz) - 121830 N
Torque Capacity for Single Rail (Mx) - 1145 Nm
Torque Capacities for Pair of Rails (My) - 6294 Nm
Torque Capacities for Pair of Rails (Mz) - 8988 Nm
Dynamic Load for Lifetime Calculation (C100) - 101240 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

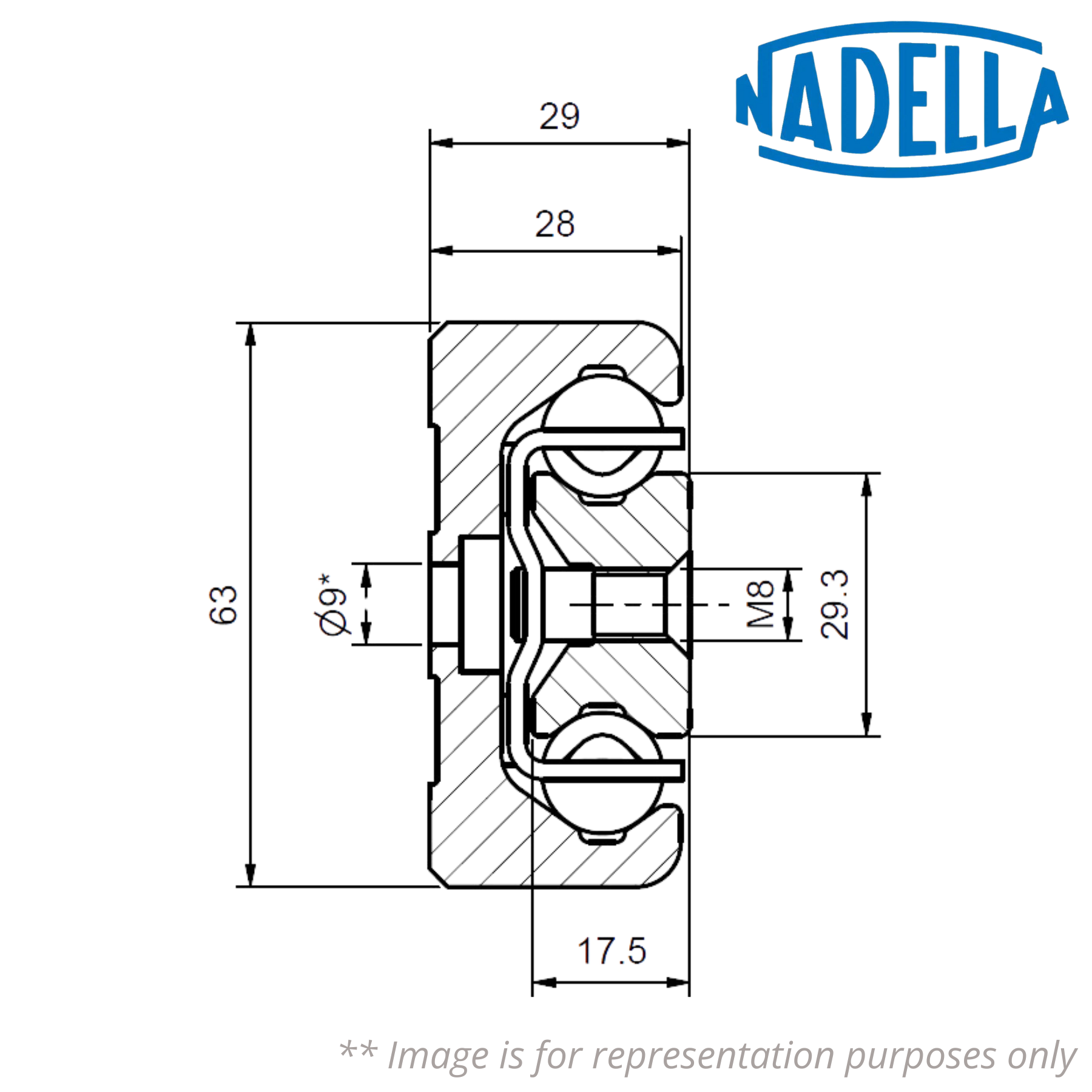

♦♦ Images are for representation purposes only
