Description
Brand - NADELLA
Item Number - NTU59-41.5DC-600 NADELLA
Category - Telescopic Rail Over Extension

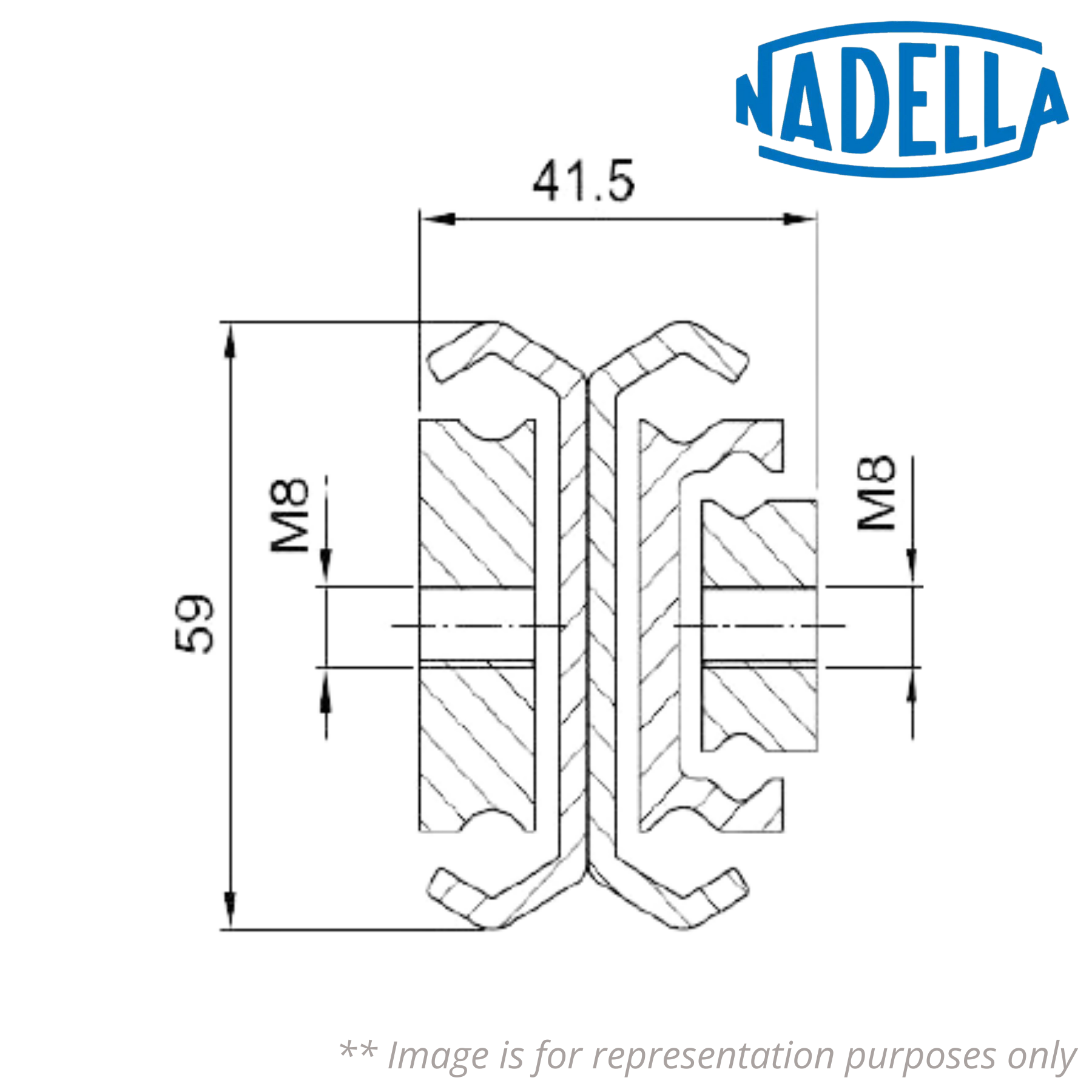

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 175 mm
Length (L) - 600 mm
Extension (E) - 900 mm
Maximum Load Per pair - 1900 N
Net Weight - 6.6 kg
Description of Suffixes and Prefixes:
NTU - Telescopic rails over extension
DC - Back-to-Back Assembly
Other salient points to be noted:
• Material - Zinc-Plated Steel
♦♦ Images are for representation purposes only
Item Number - NTU59-41.5DC-600 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 175 mm
Length (L) - 600 mm
Extension (E) - 900 mm
Maximum Load Per pair - 1900 N
Net Weight - 6.6 kg
Description of Suffixes and Prefixes:
NTU - Telescopic rails over extension
DC - Back-to-Back Assembly
Other salient points to be noted:
• Material - Zinc-Plated Steel
♦♦ Images are for representation purposes only
