Description
Brand - NADELLA
Item Number - NTV59-24T-1200 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1200 mm
Load Capacity for Pair of Rails (Cy) - 1400 N
Load Capacity for Pair of Rails (Cz) - 700 N
Net Weight - 7.6 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail

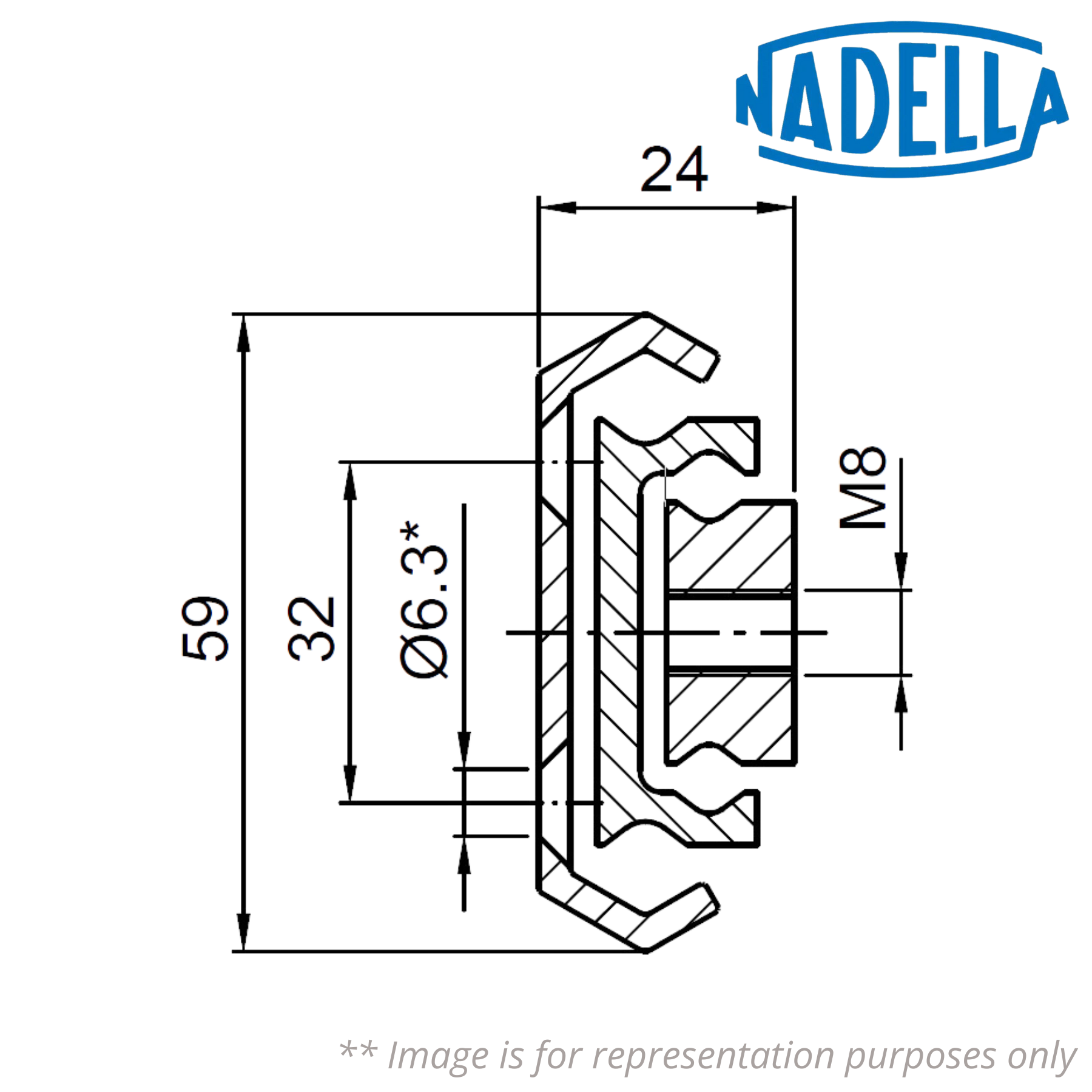

♦♦ Images are for representation purposes only
Item Number - NTV59-24T-1200 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1200 mm
Load Capacity for Pair of Rails (Cy) - 1400 N
Load Capacity for Pair of Rails (Cz) - 700 N
Net Weight - 7.6 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
