Description
Brand - NADELLA
Item Number - NTV72-43DC-1600 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 675 mm
Length (L) - 1600 mm
Extension (E) - 1600 mm
Load Capacity for Pair of Rails (Cy) - 2500 N
Load Capacity for Pair of Rails (Cz) - 1250 N
Net Weight - 29.9 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly

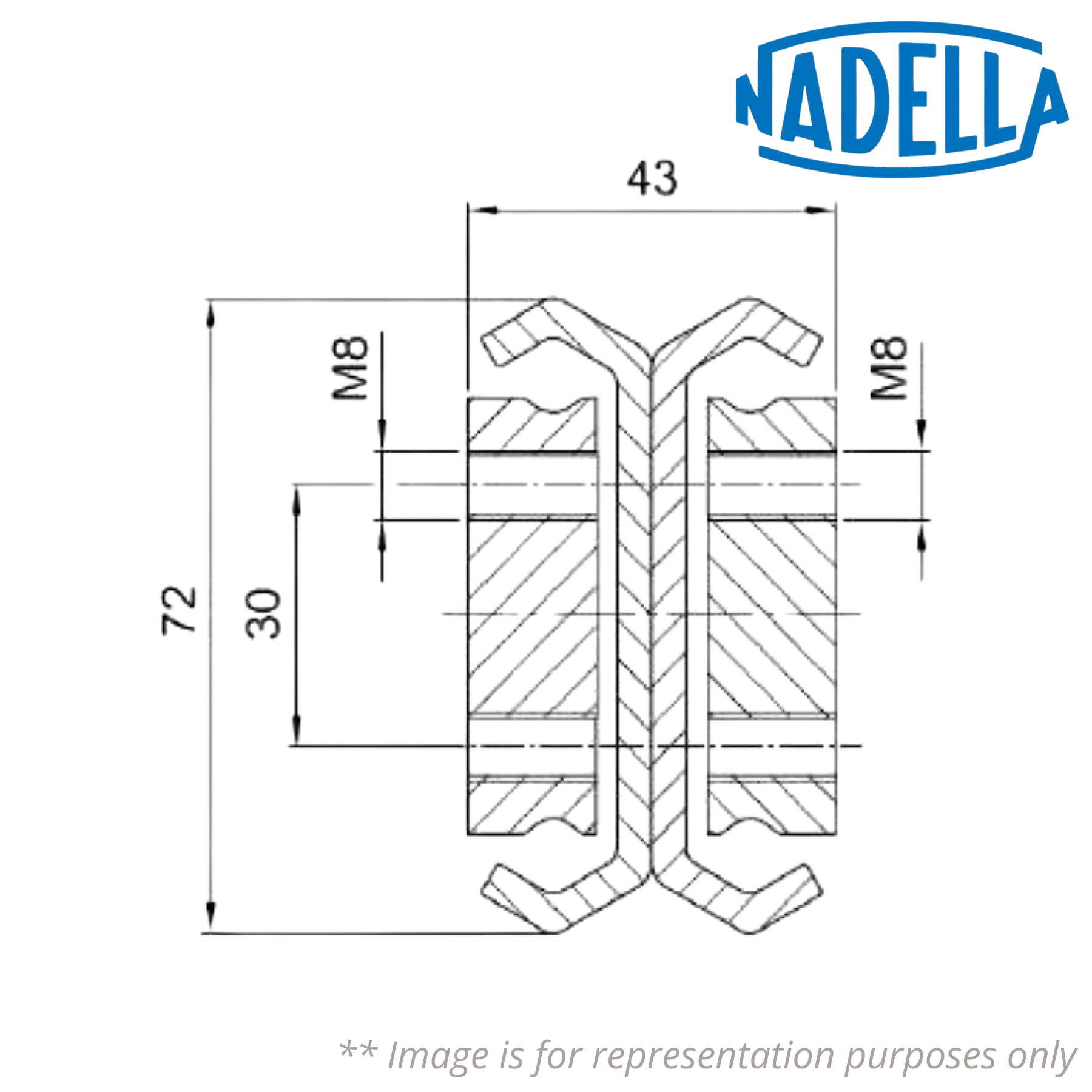

♦♦ Images are for representation purposes only
Item Number - NTV72-43DC-1600 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 675 mm
Length (L) - 1600 mm
Extension (E) - 1600 mm
Load Capacity for Pair of Rails (Cy) - 2500 N
Load Capacity for Pair of Rails (Cz) - 1250 N
Net Weight - 29.9 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly
♦♦ Images are for representation purposes only
