Description
Brand - NADELLA
Item Number - NTV80-27.5-1800 NADELLA
Category - Telescopic Rails Full Extension

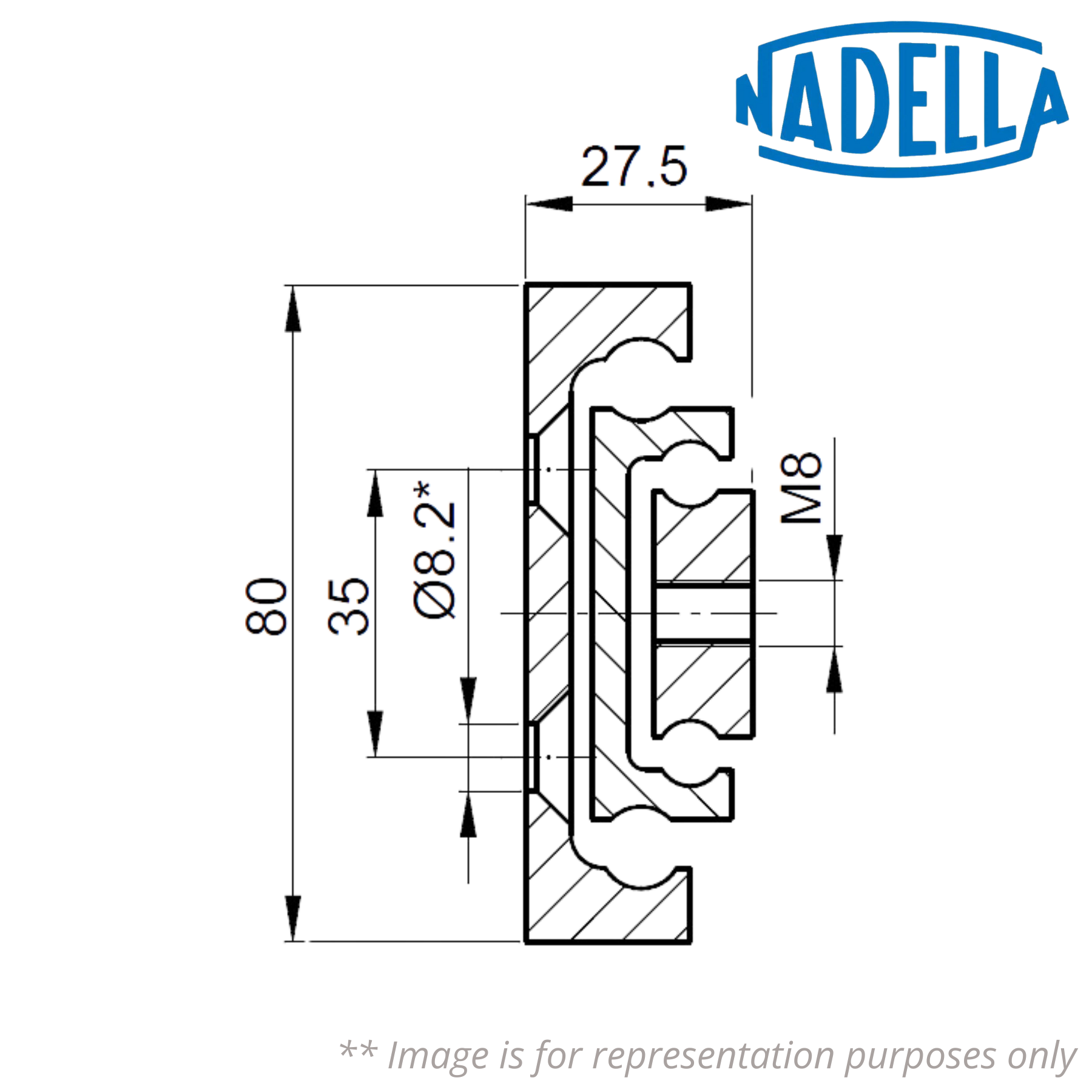

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 650 mm
Length (L) - 1800 mm
Extension (E) - 1800 mm
Load Capacity for Pair of Rails (Cy) - 2000 N
Load Capacity for Pair of Rails (Cz) - 1000 N
Net Weight - 20.5 kg
Material - Zinc-Plated Steel
Description of Prefix:
NTV - Telescopic rails full extension
♦♦ Images are for representation purposes only
Item Number - NTV80-27.5-1800 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 650 mm
Length (L) - 1800 mm
Extension (E) - 1800 mm
Load Capacity for Pair of Rails (Cy) - 2000 N
Load Capacity for Pair of Rails (Cz) - 1000 N
Net Weight - 20.5 kg
Material - Zinc-Plated Steel
Description of Prefix:
NTV - Telescopic rails full extension
♦♦ Images are for representation purposes only
