Description
Brand - NADELLA
Item Number - NTVZ208-40H-1090-D NADELLA
Category - Hardened Telescopic Rails Full Extension

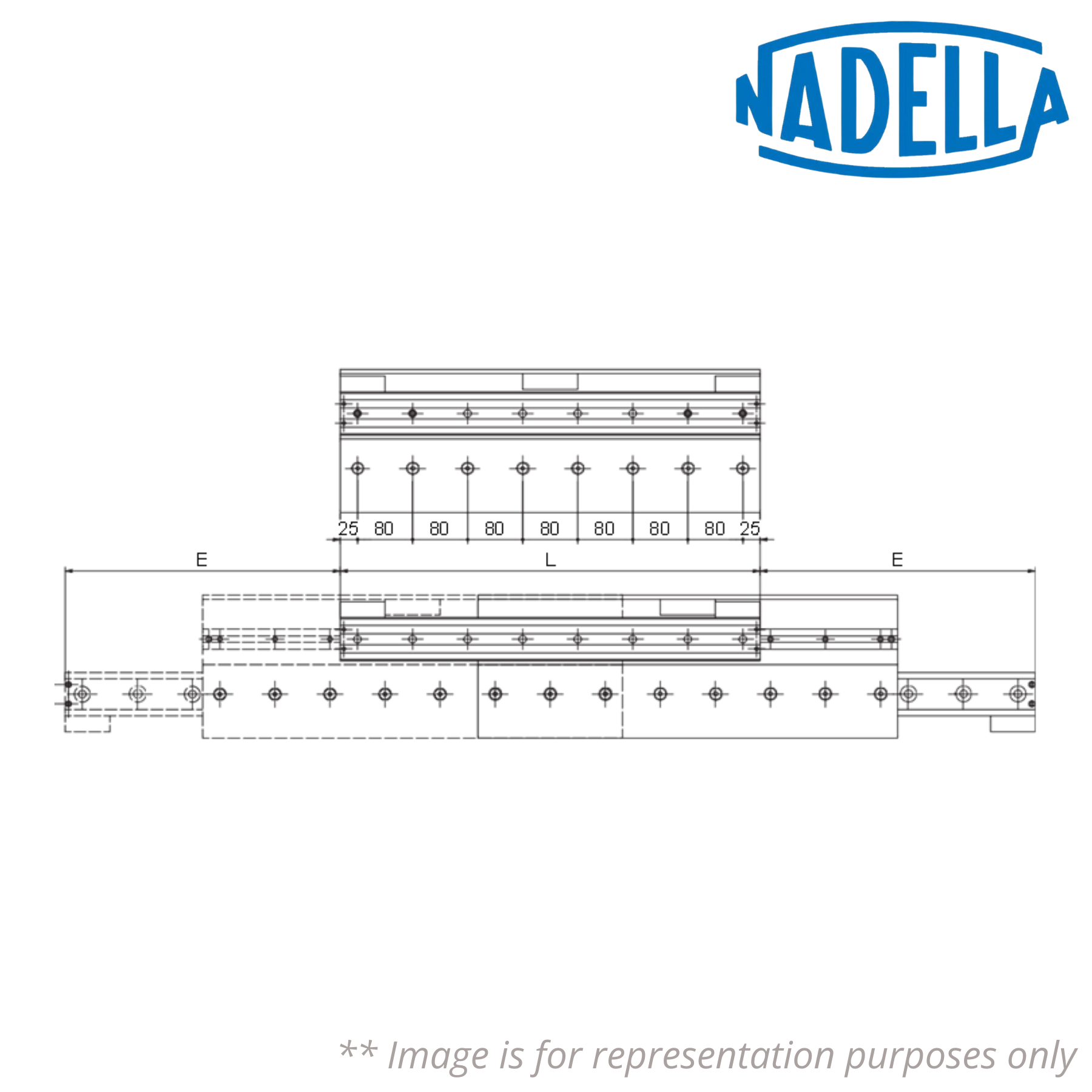

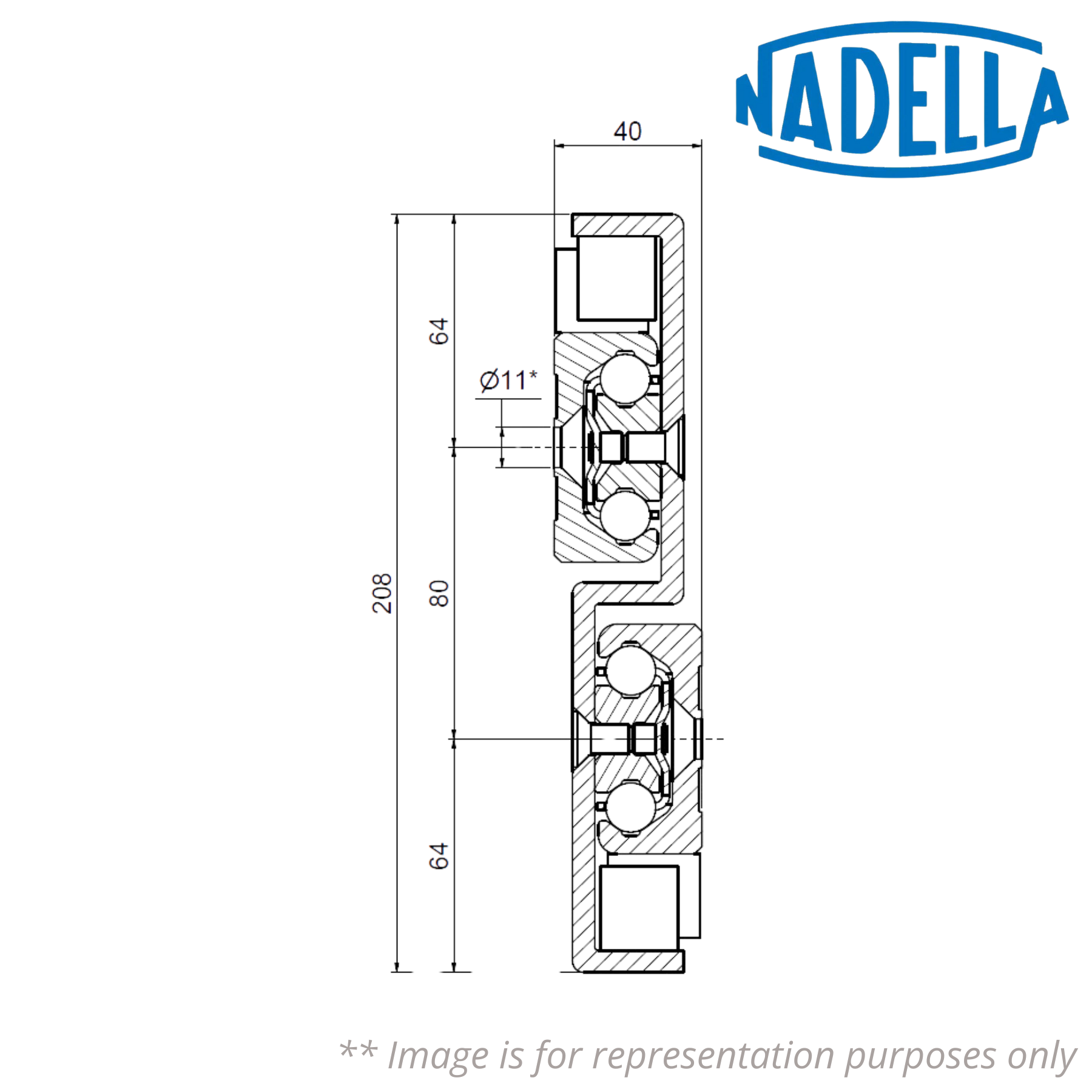

Principal Dimensions & Load Ratings (Metric):
Length (L) - 1090 mm
Extension (E) - 880 mm
Load Capacity for Pair of Rails (Cy) - 30083 N
Dynamic Load for Lifetime calculation (Cdyn) - 19445 N
Weight - 39.13 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
Item Number - NTVZ208-40H-1090-D NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1090 mm
Extension (E) - 880 mm
Load Capacity for Pair of Rails (Cy) - 30083 N
Dynamic Load for Lifetime calculation (Cdyn) - 19445 N
Weight - 39.13 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
