Description
Brand - NADELLA
Item Number - NTVZ208-40H-1970-D NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1970 mm
Extension (E) - 1760 mm
Load Capacity for Pair of Rails (Cy) - 27228 N
Dynamic Load for Lifetime calculation (Cdyn) - 13874 N
Weight - 70.73 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction

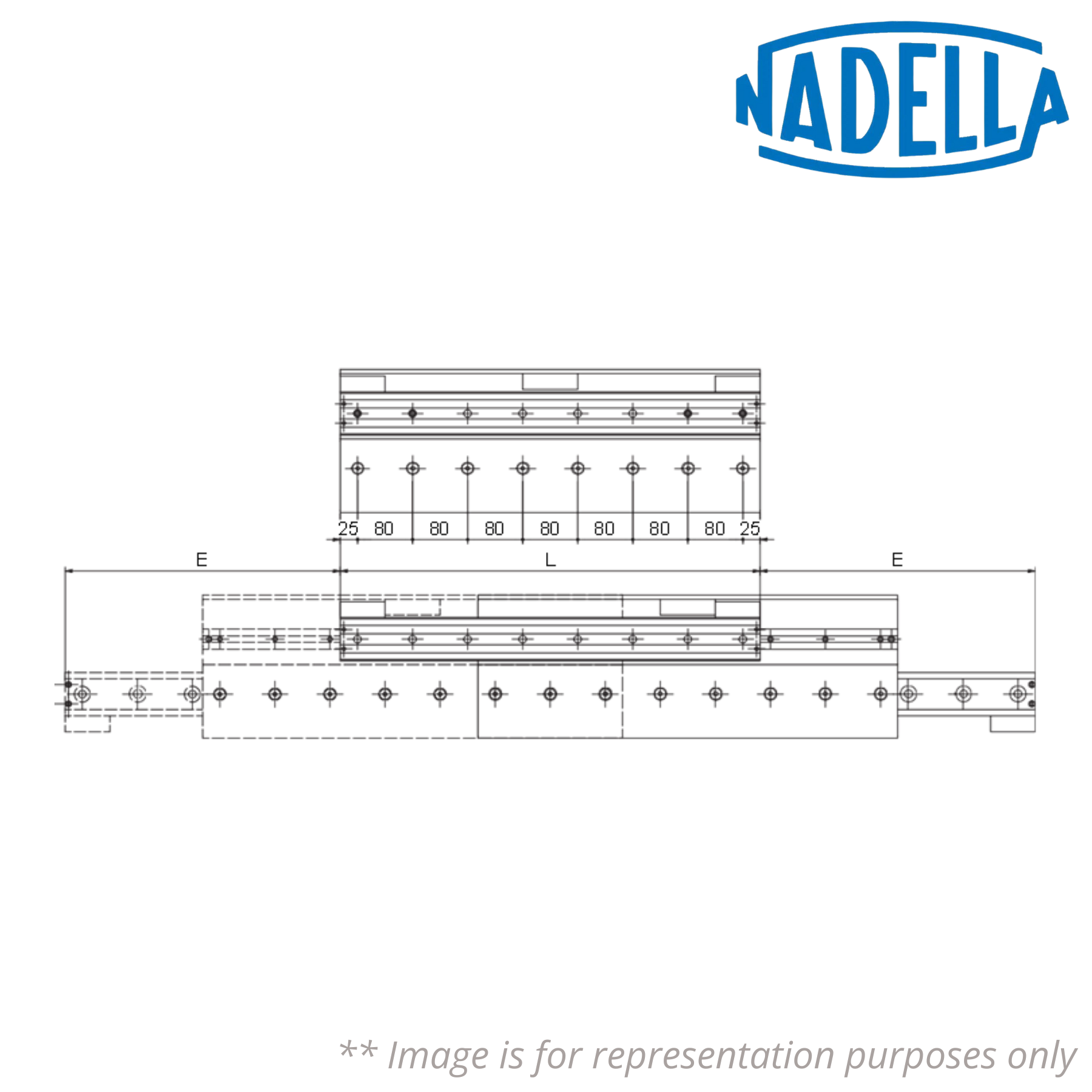

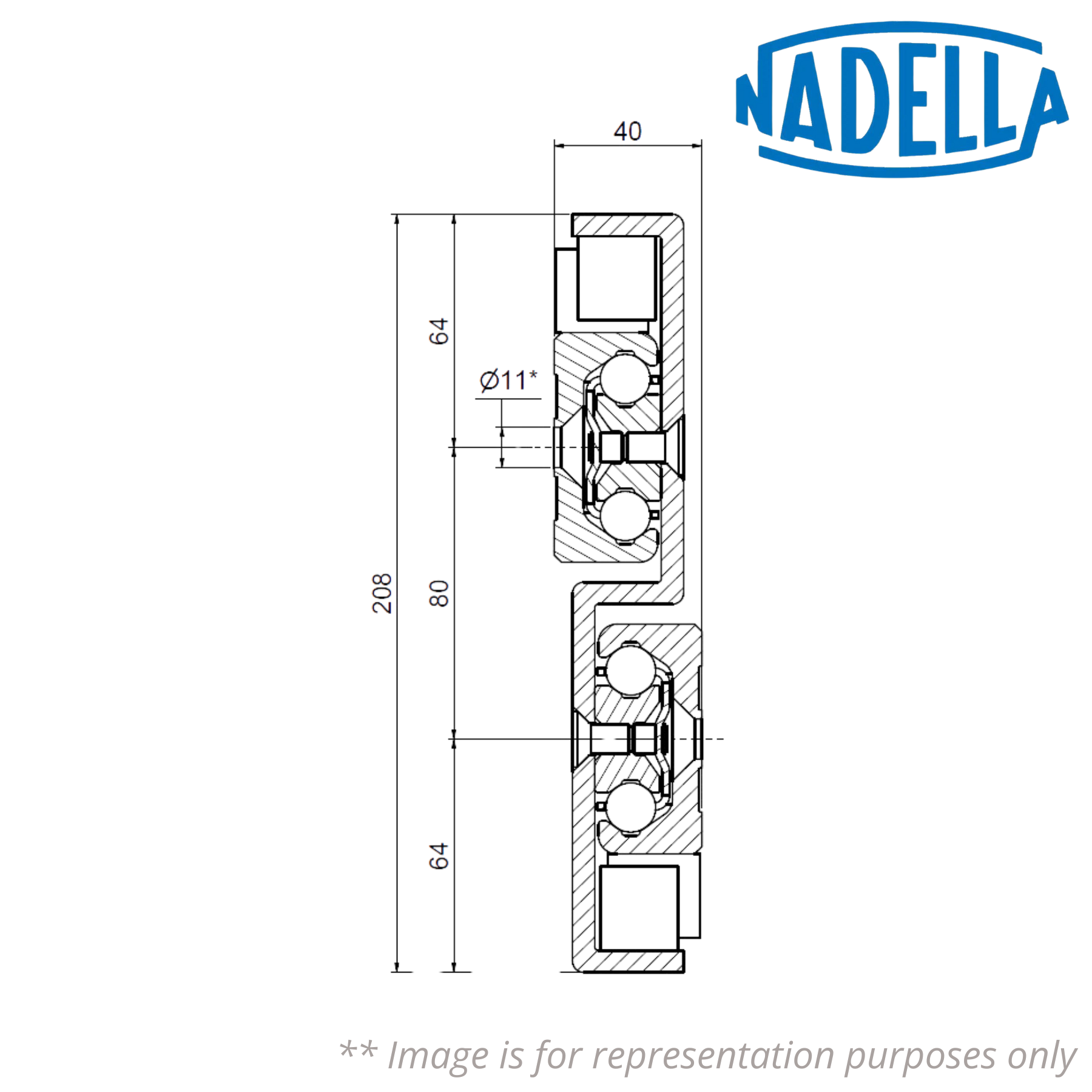

♦♦ Images are for representation purposes only
