PFL 10 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - PFL 10 NADELLA
Category - Cam Followers With Stud and Outer Cylindrical Ring
Also Known As - PFL10

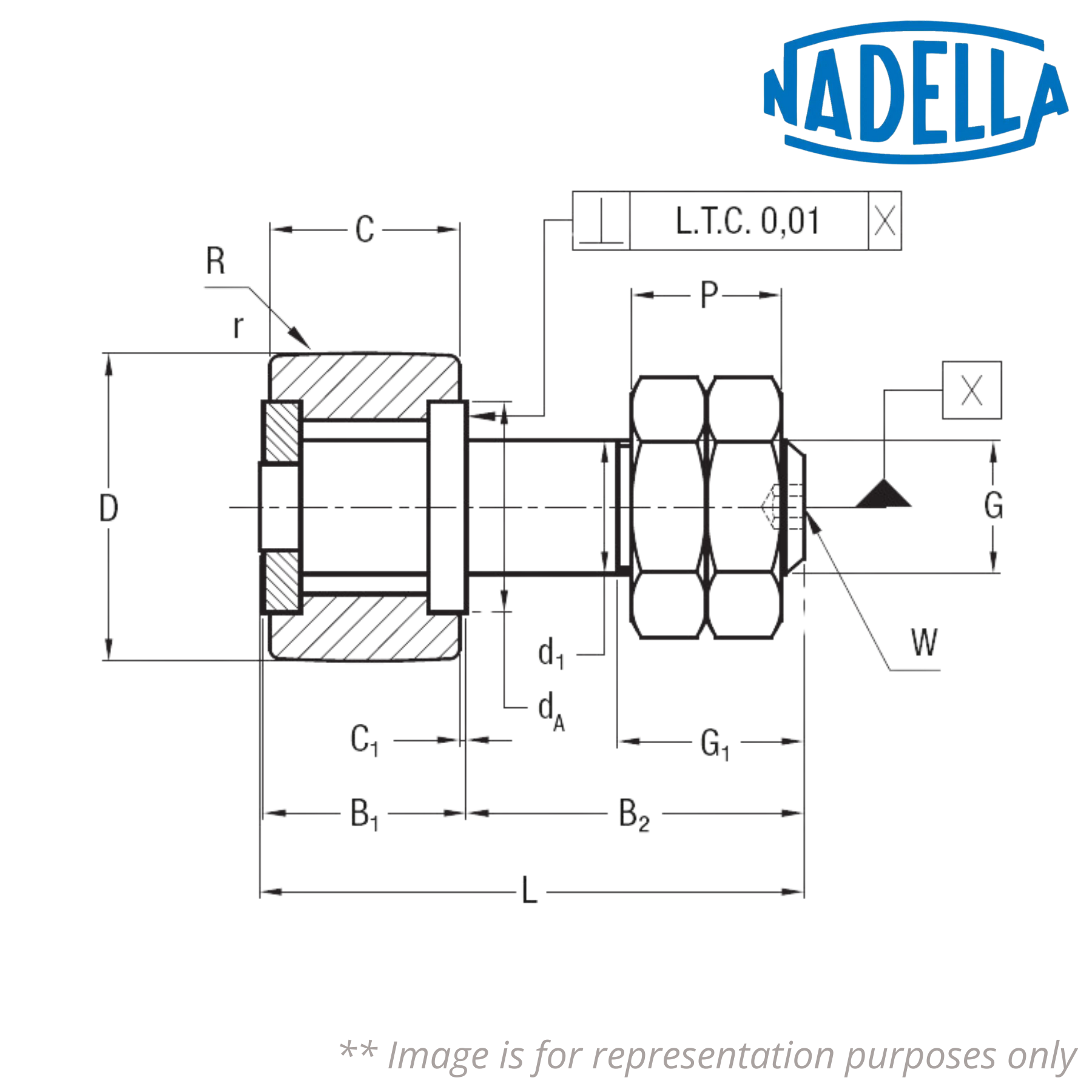

Outer Diameter (D) mm - 10
Diameter of the Stud (d1) mm - 6
L (mm) - 26.5
B1 (mm) - 10
B2 (mm) - 16
Threading (G) mm - M6 x 1
G1 (mm) - 8
C (mm) - 9
C1 (mm) - 0.5
dA (mm) - 8.5
r (mm) - 0.5
W (mm) - 3
P (mm) - 6.4
Load Coefficients (Cw) N - 2400
Dynamic Load Limit (Fr) N - 1500
Static Load Limit (For) N - 2600
Speed Limit with Grease (min-1) - 13000
Weight (Kg) - 0.011
Clamping Torque (Nm) - 3

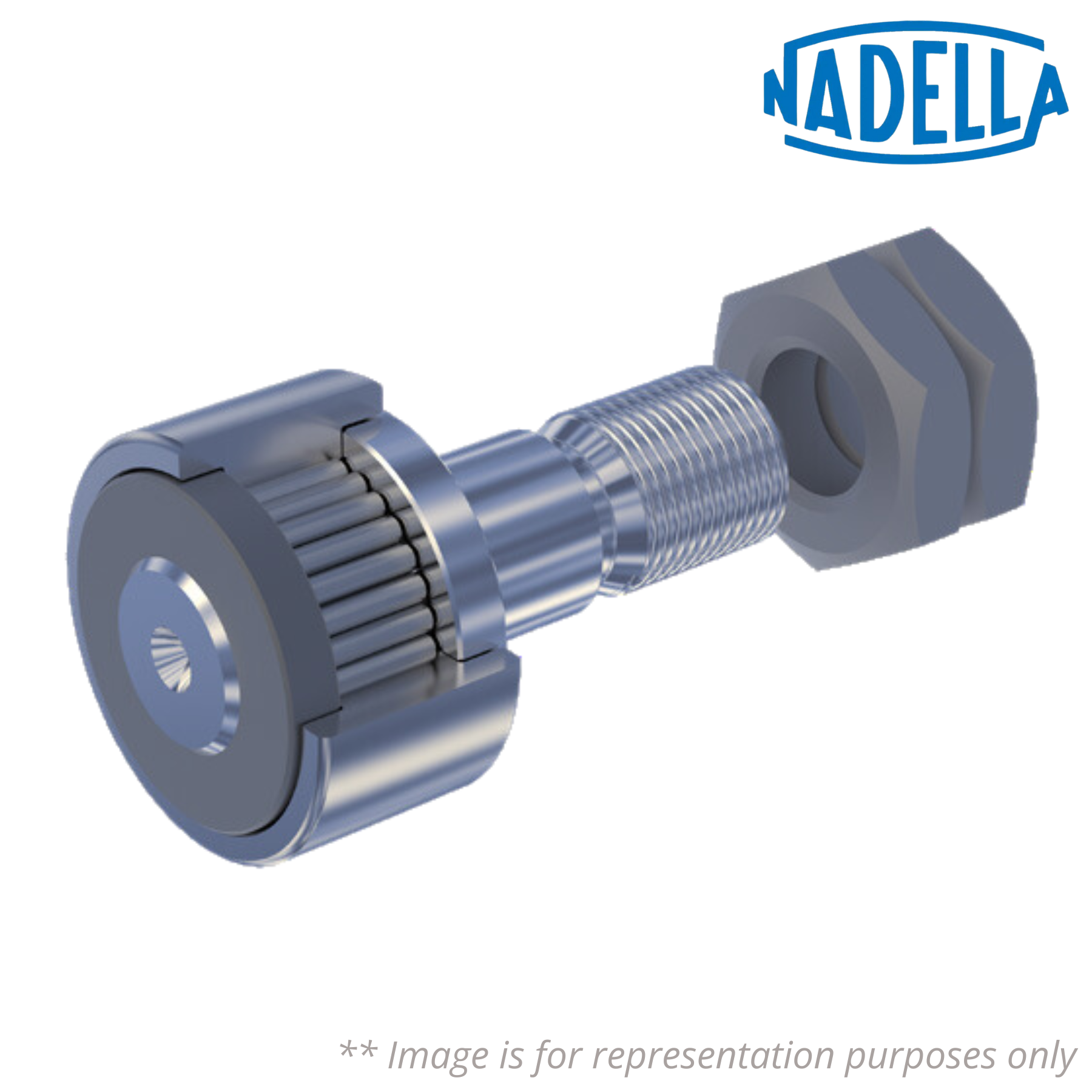

PFL - Cam Follower with Stud and Outer Cylindrical Ring
