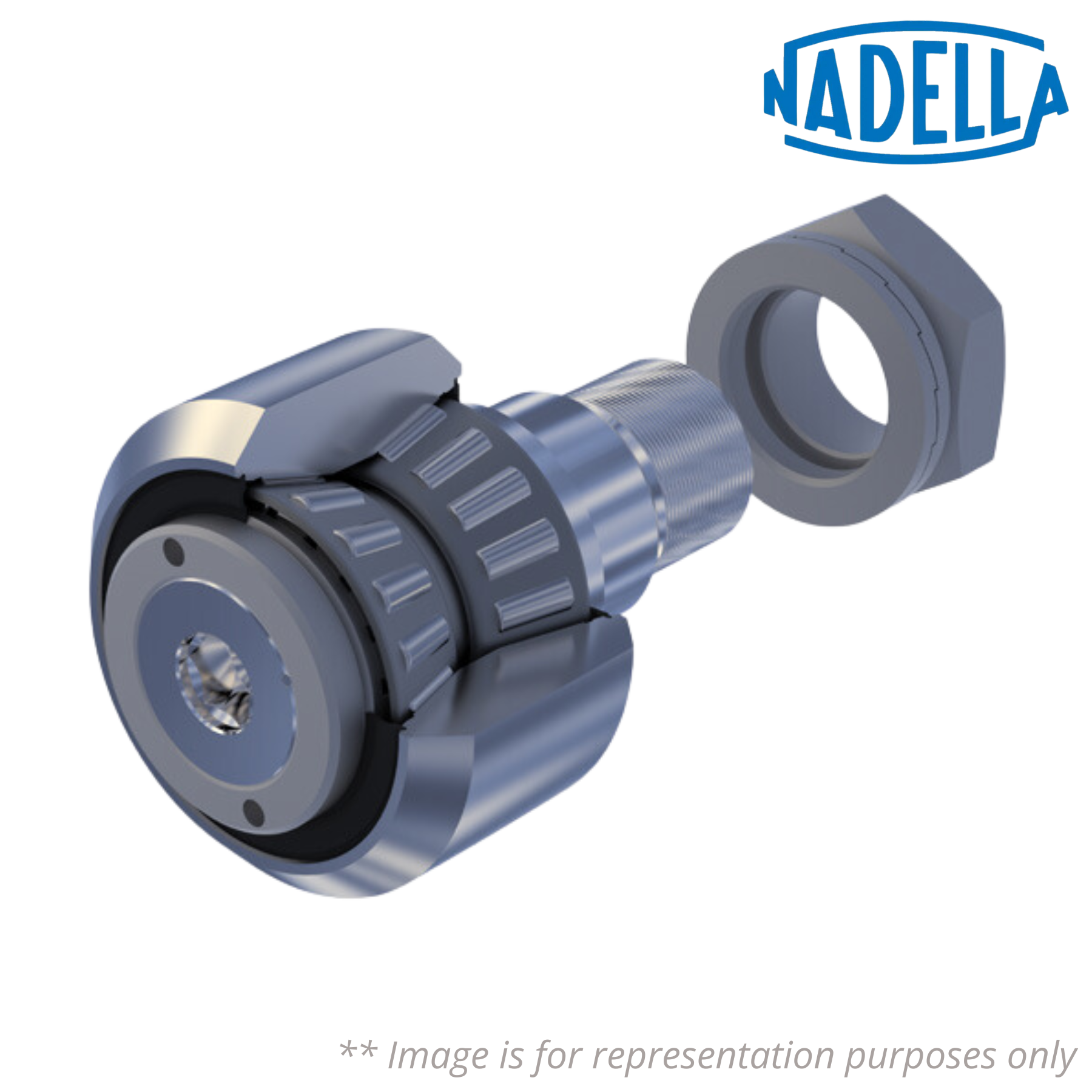

PKR 110 C NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - PKR 110 C NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PKR110C

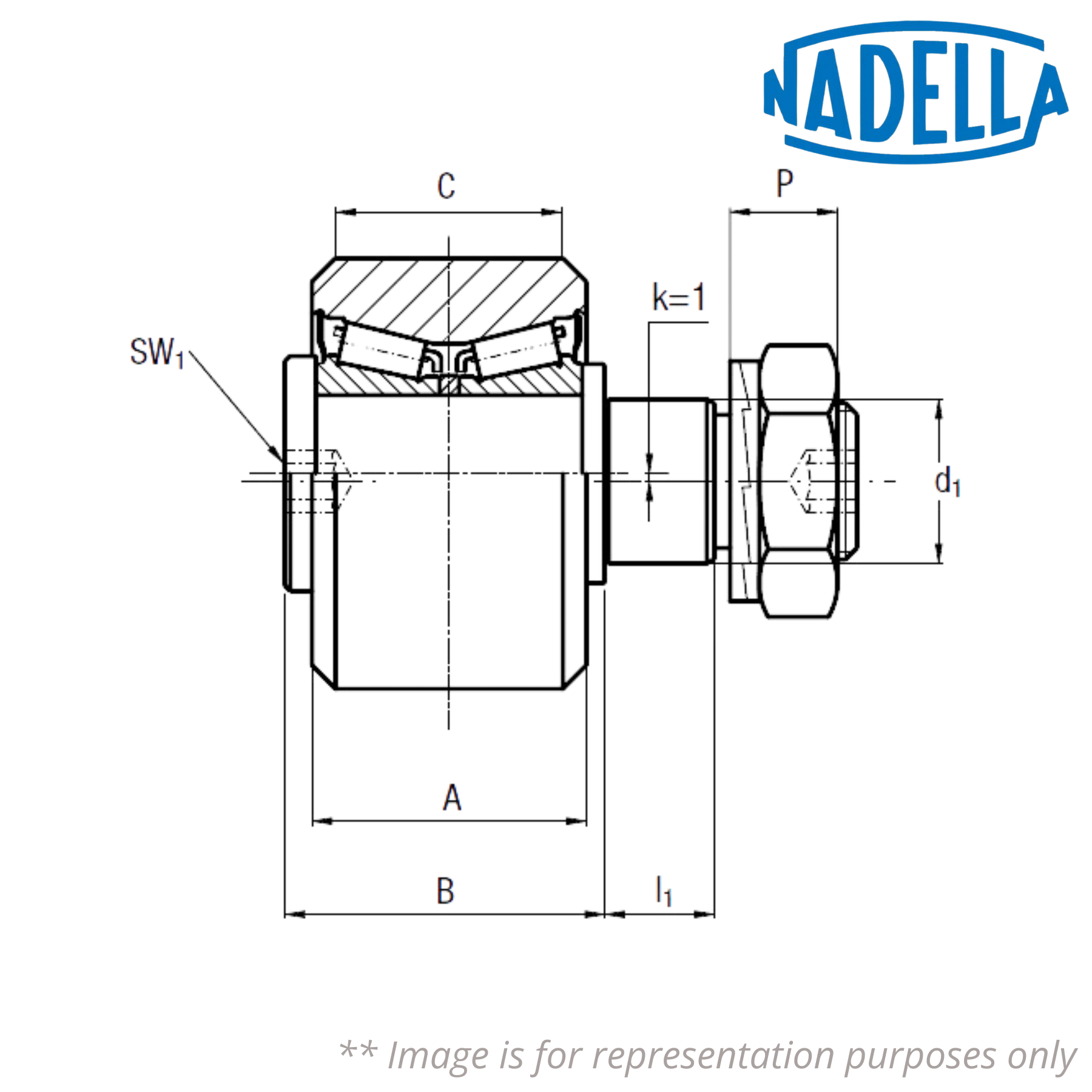

Dimension (De) mm - 110
Housing Bore Tolerance (d1) mm - 42
Dimension - M36 x 1.5
m (mm) - 34
S min (mm) - 33
P (mm) - 24.6
L (mm) - 135
A (mm) - 60
B (mm) - 70
C (mm) - 48
R (mm) - 1200
I1 ( mm) - 32
M (mm) - 56
SW1 (mm) - 14
SW2 (mm) - 55
k (mm) - 1
Basic Dynamic Load Coefficient (Cw) N - 190000
Radial Load Limit (Fr) N - 55600
Torque Wrench Setting for Non-Lubricating Threads (Nm) - 450
Weight (kg) - 4.9
PKR - Eccentric Cam Followers
