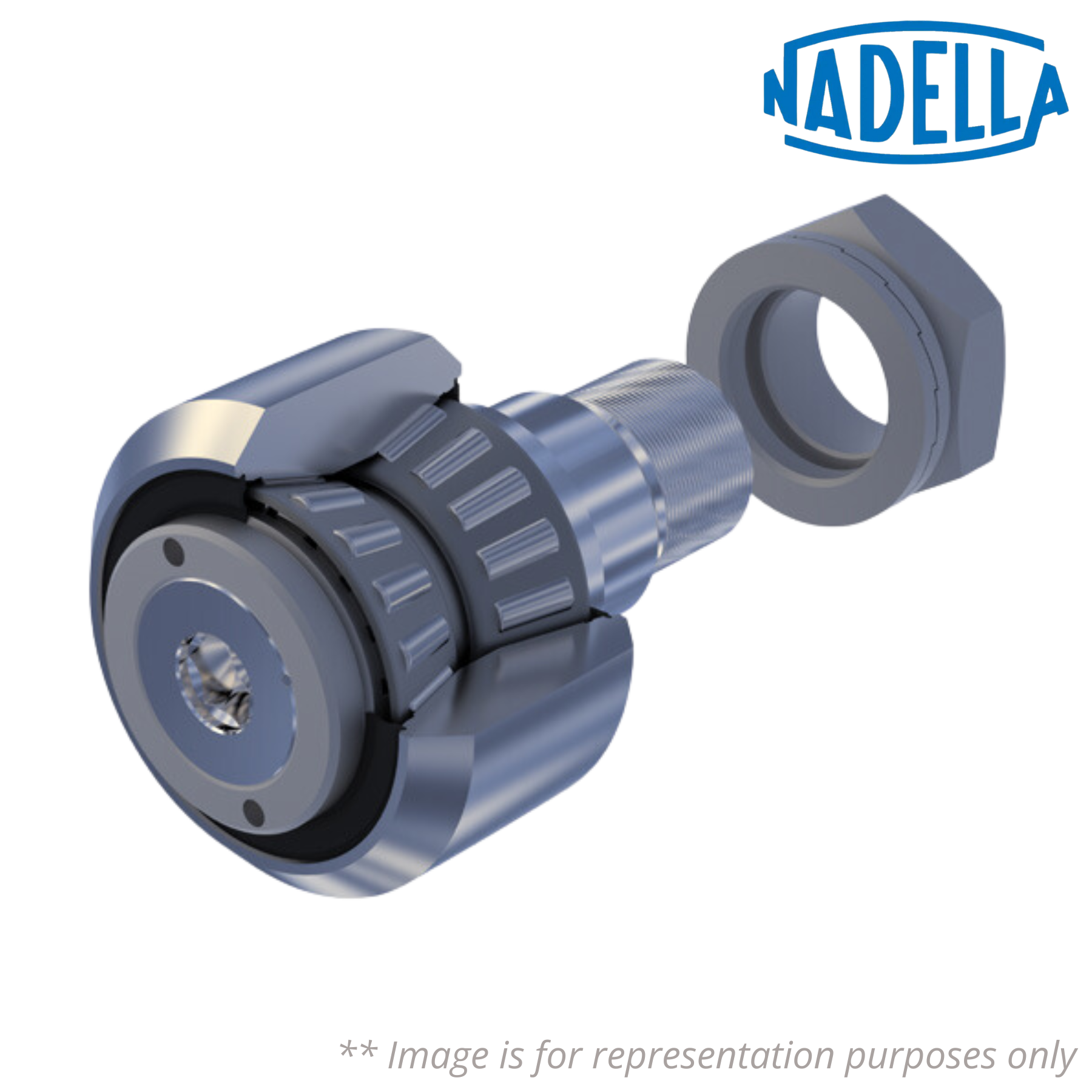

PKR 72 C NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - PKR 72 C NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PKR72C

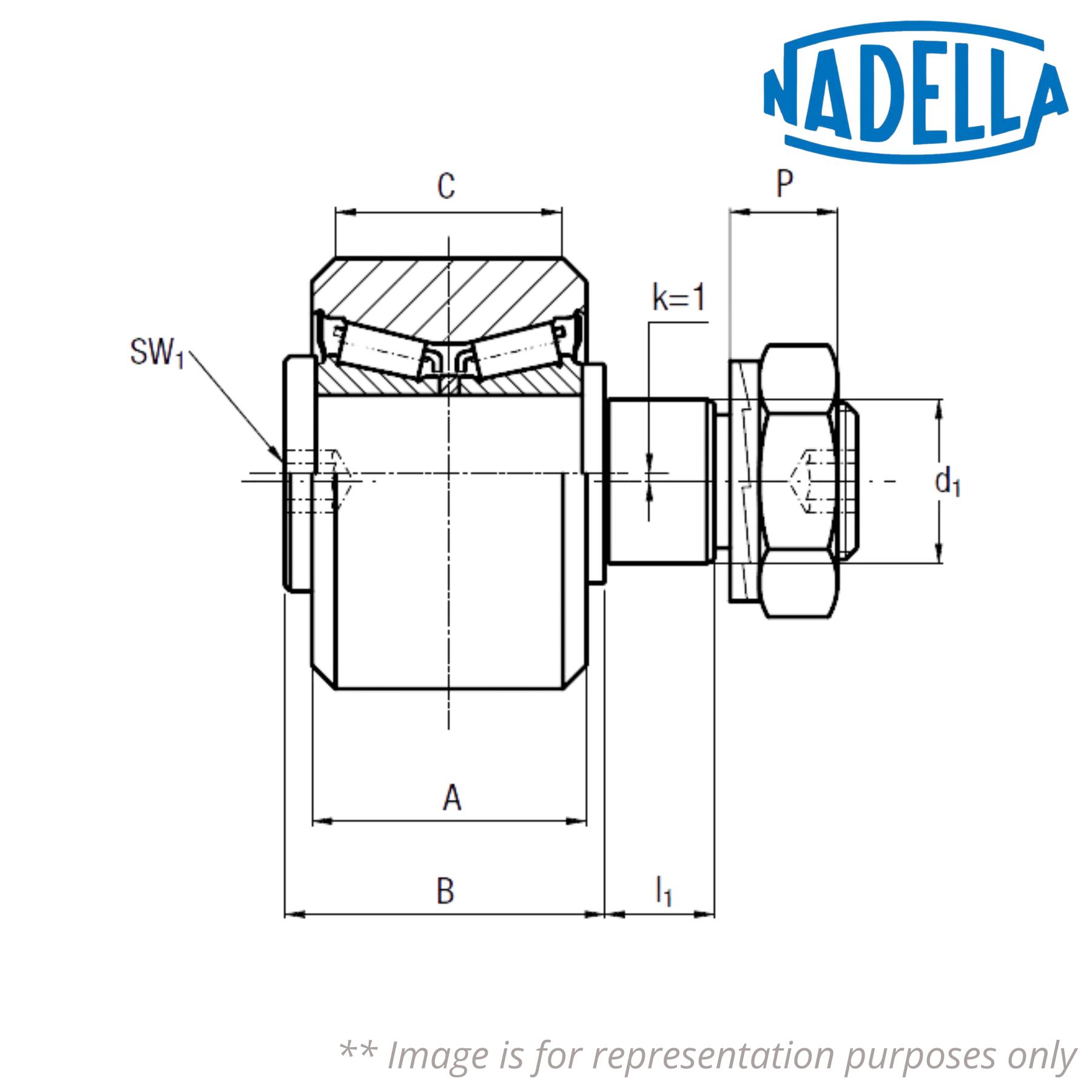

Dimension (De) mm - 72
Housing Bore Tolerance (d1) mm - 36
Dimension - M30 x 1.5
m (mm) - 27
S min (mm) - 19
P (mm) - 21.6
L (mm) - 100
A (mm) - 45
B (mm) - 55
C (mm) - 33
R (mm) - 1200
I1 ( mm) - 18
M (mm) - 44
SW1 (mm) - 12
SW2 (mm) - 46
k (mm) - 1
Basic Dynamic Load Coefficient (Cw) N - 69000
Radial Load Limit (Fr) N - 31300
Torque Wrench Setting for Non-Lubricating Threads (Nm) - 300
Weight (kg) - 1.6
PKR - Eccentric Cam Followers
