Description
Brand - BECO
Item Number - PLASTIC HOUSING P PL 209 BECO
Category - Housing in Plastic (200 Series)

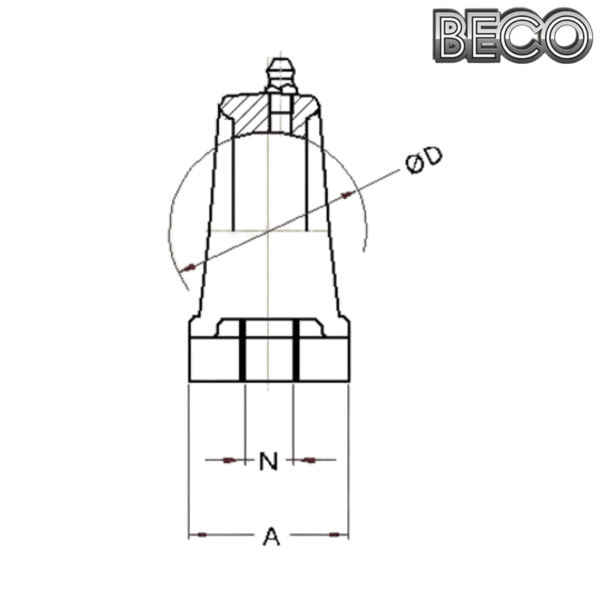

Diameter (D) mm - 85
Dimension (L) mm - 192
Dimension (J) mm - 146 ± 0.7
Dimension (A) mm - 54
Dimension (H) mm - 106
Dimension (H1) mm - 22.5
Dimension (H2) mm - 54.0 ± 0.15
Diameter (N) mm - 17
Dimension (N1) mm - 20
Weight (kg) - 0.366
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
PLASTIC HOUSING P PL 209 + UC 209 BSS 2RS NSF H1 = UCP PL 209 BSS 2RS NSF H1
** Images are for representation purposes only
