Description

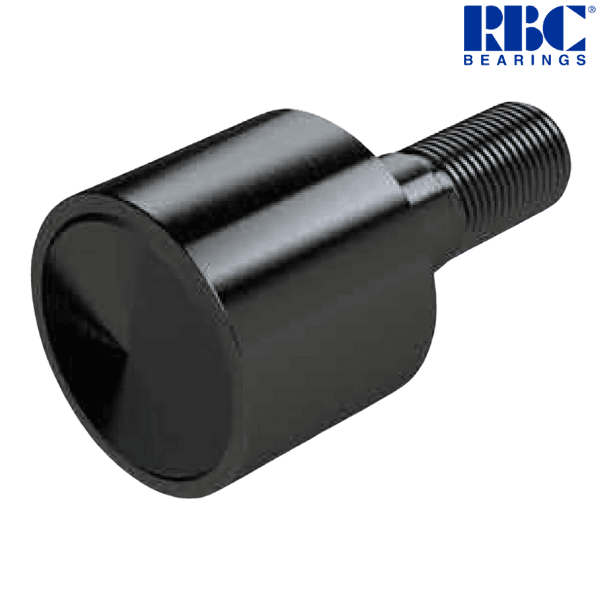

Brand - RBC
Item Number - PTR 1 1/2 RBC
Category - Track Runner (Plain Track Rollers)
Inside Bearing Type - Ball Bearing (BB)

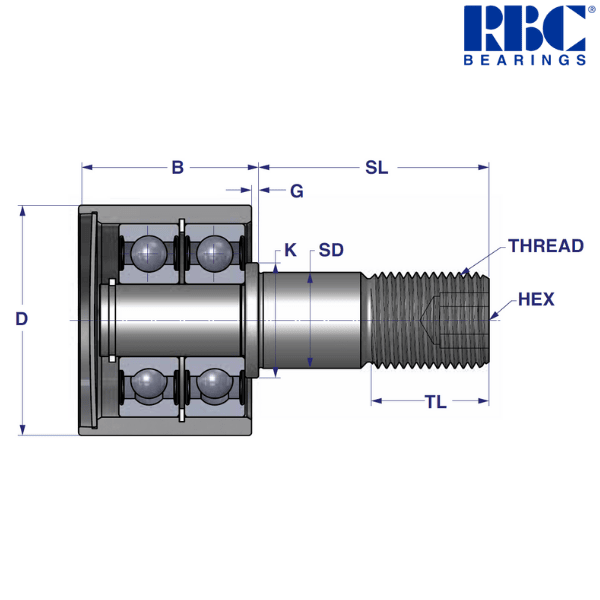

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.5 (+.000 to -.001) inch
Width of Roller (B) - 1.187 inch
Shank Diameter (SD) - 0.625 (+.000 to -.001) inch
Shank Length (SL) - 1.5 inch
Minimum Eff. Length Thread Length (TL) - 0.75 inch
Thread Class 2A - 5/8-18
Hex - 0.3125 inch
Shoulder Diameter (K) - 0.75 inch
Shoulder Length (G) - 0.062 inch
Dynamic Radial Load - 2760 lbs
Static Thrust Load - 680 lbs
Static Radial Load - 1100 lbs
Equivalent Part Number in OSBORN - PLR 1-1/2
Equivalent Part Number in McGill - PCF 1-1/2
♦ ♦ Images are for representation purposes only
Item Number - PTR 1 1/2 RBC
Category - Track Runner (Plain Track Rollers)
Inside Bearing Type - Ball Bearing (BB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.5 (+.000 to -.001) inch
Width of Roller (B) - 1.187 inch
Shank Diameter (SD) - 0.625 (+.000 to -.001) inch
Shank Length (SL) - 1.5 inch
Minimum Eff. Length Thread Length (TL) - 0.75 inch
Thread Class 2A - 5/8-18
Hex - 0.3125 inch
Shoulder Diameter (K) - 0.75 inch
Shoulder Length (G) - 0.062 inch
Dynamic Radial Load - 2760 lbs
Static Thrust Load - 680 lbs
Static Radial Load - 1100 lbs
Equivalent Part Number in OSBORN - PLR 1-1/2
Equivalent Part Number in McGill - PCF 1-1/2
♦ ♦ Images are for representation purposes only
