Description
Brand - RBC

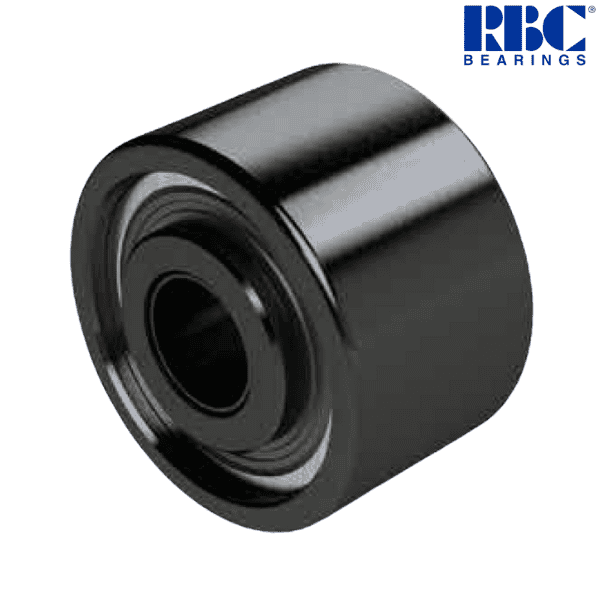

Item Number - PTRY 10 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

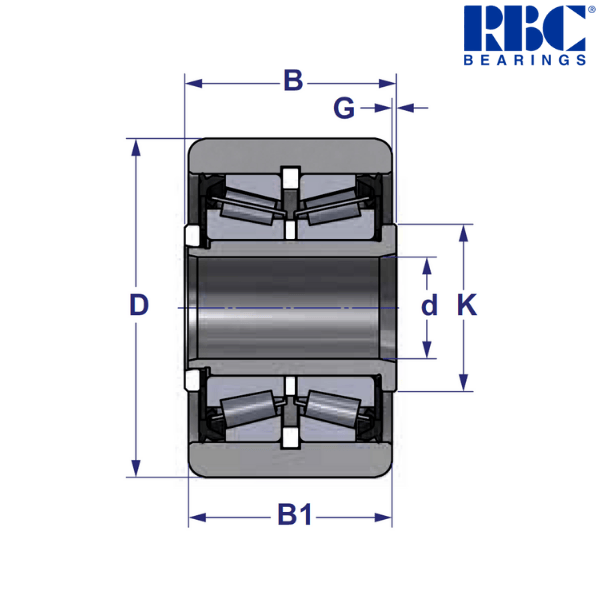

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 10 (+.000 to -.001) inch
Width (B1) - 5.25 inch
Bore Diameter (d) - 4.255 (+.001 to -.000) inch
Overall Width (B) - 5.5 (+.005 to -.010) inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 6.5 inch
Dynamic Radial Load - 138240 lbs
Static Thrust Load - 196000 lbs
Static Radial Load - 276000 lbs
Equivalent Part Number in OSBORN - PLRY 10
♦ ♦ Images are for representation purposes only
