Description
Brand - RBC
Item Number - PTRY 4 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

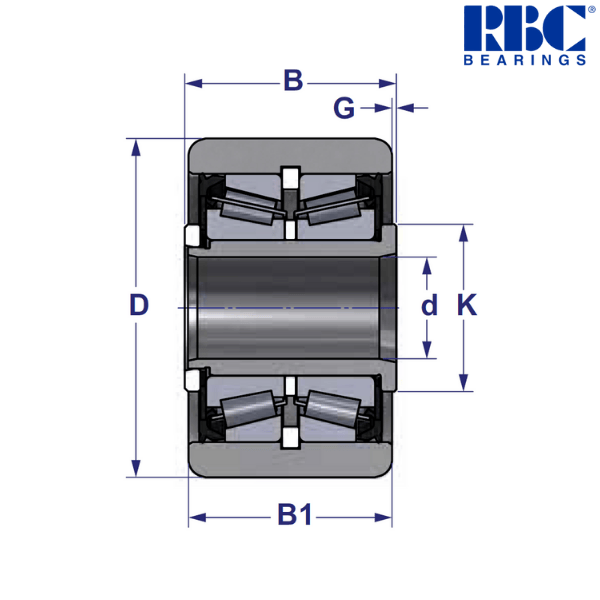

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 4 (+.000 to -.001) inch
Width (B1) - 2.25 inch
Bore Diameter (d) - 1.25 (+.0005 to -.0000) inch
Overall Width (B) - 2.312 (+.005 to -.010) inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2.25 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - PLRY 4
Equivalent Part Number in McGill - PCYR 4

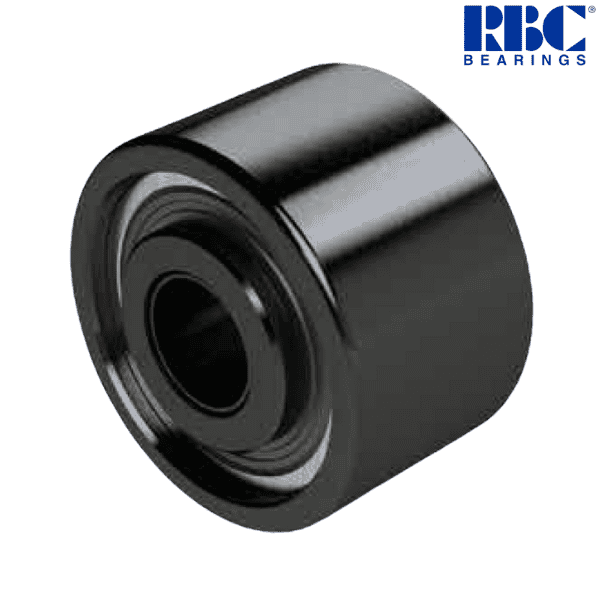

♦ ♦ Images are for representation purposes only
Item Number - PTRY 4 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 4 (+.000 to -.001) inch
Width (B1) - 2.25 inch
Bore Diameter (d) - 1.25 (+.0005 to -.0000) inch
Overall Width (B) - 2.312 (+.005 to -.010) inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2.25 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - PLRY 4
Equivalent Part Number in McGill - PCYR 4
♦ ♦ Images are for representation purposes only
