Description
Brand - NADELLA
Item Number - PZ20M20HD NADELLA
Category - Pinion

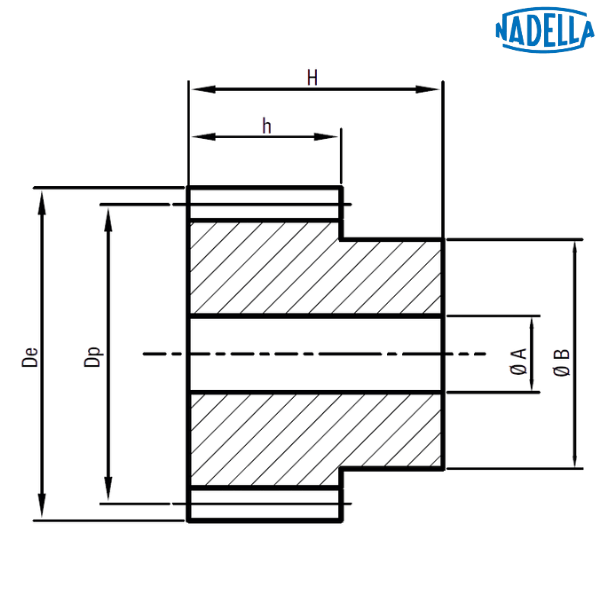

Principal Dimensions & Load Ratings (Metric):
Dimension (Z) - 20
Dimension (m) - m 2
Dimension (De) - 44 mm
Dimension (Dp) - 40 mm
Dimension (h) - 20 mm
Dimension (H) - 35 mm
Dimension (A) - 10 (H7) mm
Dimension (B) - 30 mm
Weight - 0.26 kg
Description of Prefix:
PZ - Pinion for FSHZ-FSXZ guide rail
Other salient points to be noted:
• Material: C45 Milled teeth Induction hardened
• Straight teeth
• Pressure angle 20°
• Other gear type available on request

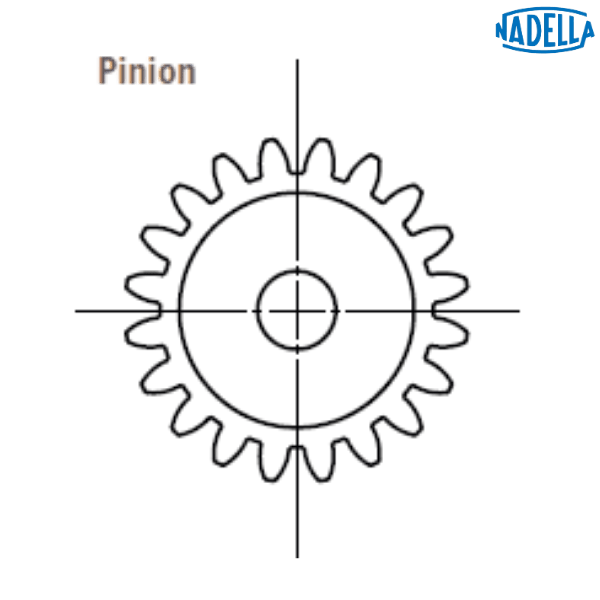

♦ ♦ Images are for representation purposes only
