Description
Brand - FAG
Item Number - QJ1017-XL-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 85
Outside Diameter (D) mm - 130
Width (B) mm - 22
Basic Dynamic Load Rating, Radial (Cr) N - 86000
Basic Static Load Rating, Radial (C0r) N - 95000
Fatigue Load Limit, Radial (Cur) N - 6400
Limiting Speed (nG) min–1 - 9200
Reference Speed (nϑr) min–1 - 4250
Weight (m) kg - 1.11
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 114.8
Shoulder Diameter Inner Ring (d1) mm - 101.1
Distance Between the Apexes of the Pressure Cones (a) mm - 75
Hight Retaining Slot (an) mm - 5
Width Retaining Slot (bn) mm - 6.5
Radius Retaining Slot (rn) mm - 0.5

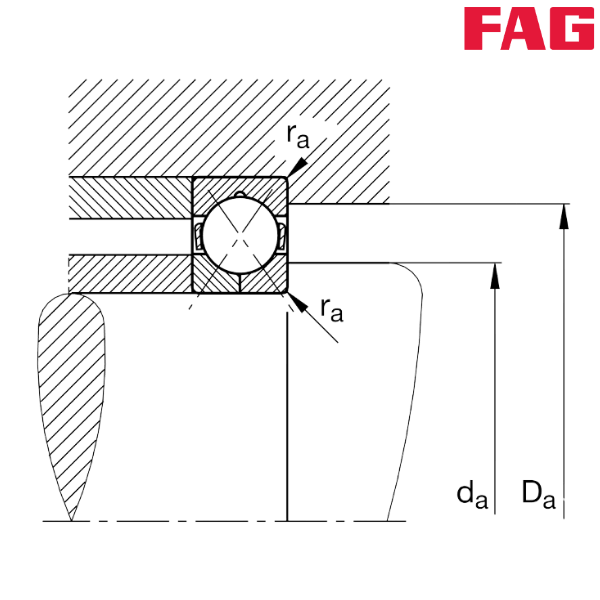

Minimum Diameter Shaft Shoulder (da) mm - 91
Maximum Diameter of Housing Shoulder (Da) mm - 124
Maximum Fillet Radius (ra) mm - 1
Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
N2 - Two Retaining Slots in Outer Ring
** Images are for representation purposes only
