Description
Brand - FAG
Item Number - QJ1022-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 170
Width (B) mm - 28
Basic Dynamic Load Rating, Radial (Cr) N - 138000
Basic Static Load Rating, Radial (C0r) N - 184000
Fatigue Load Limit, Radial (Cur) N - 8100
Limiting Speed (nG) min–1 - 6900
Reference Speed (nϑr) min–1 - 3350
Weight (m) kg - 2.52
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 149.8
Shoulder Diameter Inner Ring (d1) mm - 131.3
Distance Between the Apexes of the Pressure Cones (a) mm - 98
Hight Retaining Slot (an) mm - 6.5
Width Retaining Slot (bn) mm - 6.5
Radius Retaining Slot (rn) mm - 0.5

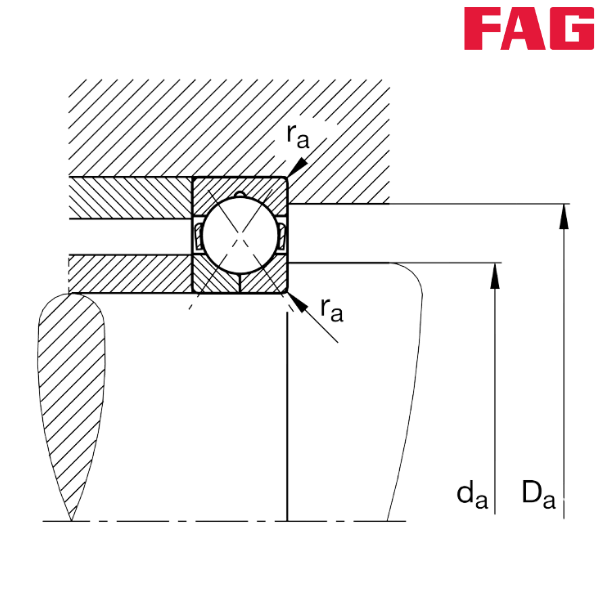

Minimum Diameter Shaft Shoulder (da) mm - 119
Maximum Diameter of Housing Shoulder (Da) mm - 161
Maximum Fillet Radius (ra) mm - 2
Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
N2 - Two Retaining Slots in Outer Ring
** Images are for representation purposes only
